Drawing	Code	Description	Photo

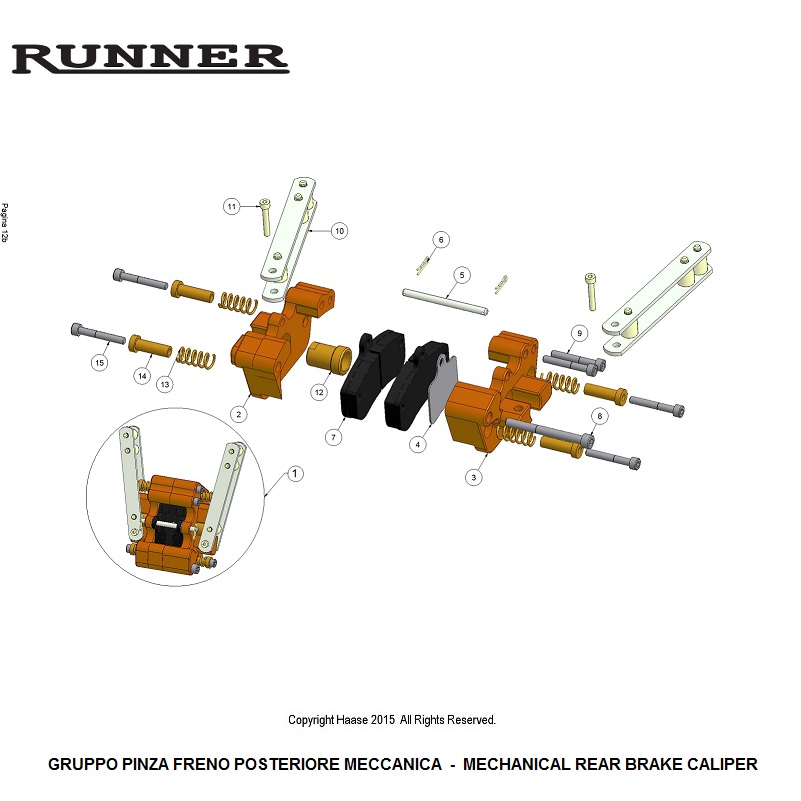

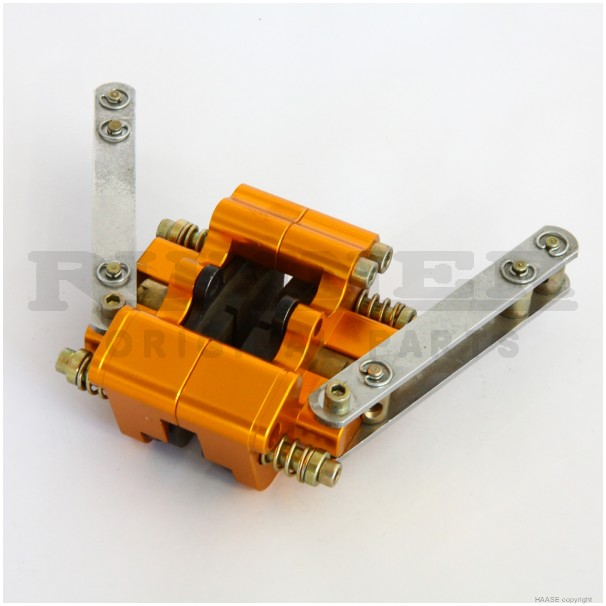

[ 1 ]	186.1000	MECHANICAL REAR BRAKE CALIPER GOLD COMPLETE

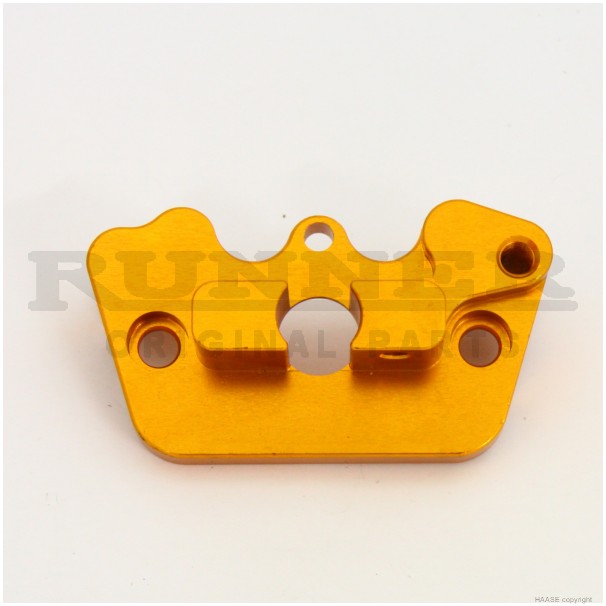

[ 2 ]	186.1001	INTERN. HALF BODY MECH. BRAKE CALIPER GOLD

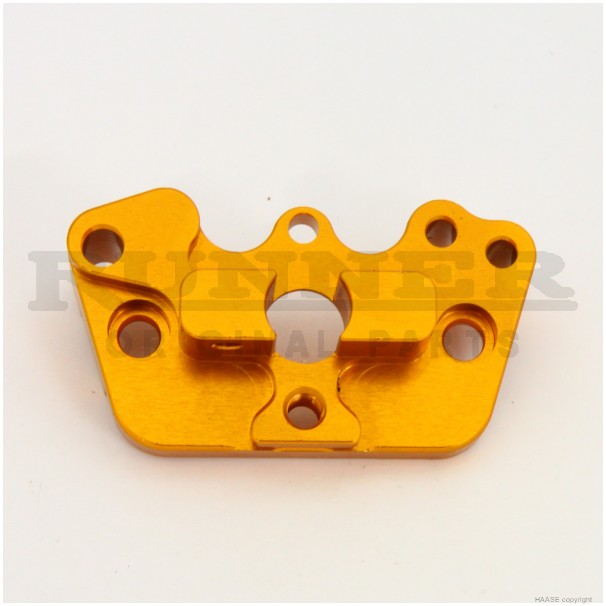

[ 3 ]	186.1002	EXTERN. HALF BODY MECH. BRAKE CALIPER GOLD
[ 6 ]	021.0030	SAFETY PIN
[ 7 ]	183.8260	REAR BRAKE PAD, RUNNER FR08
[ 8 ]	181.2991	SOCKET HEAD SCREW TCE 8X90

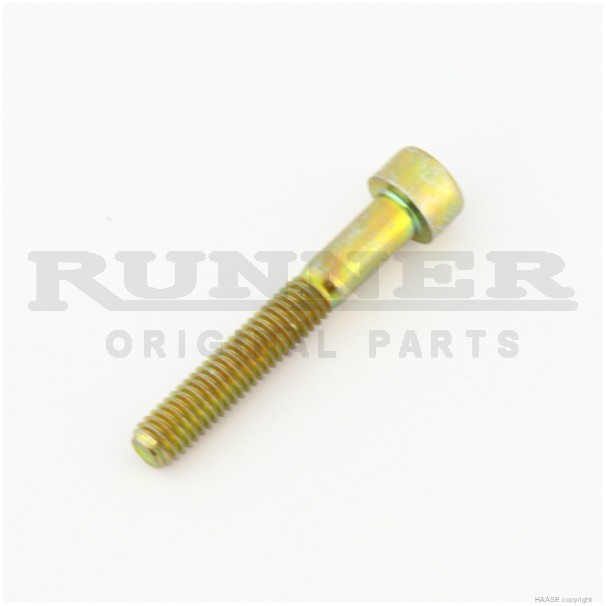

[ 9 ]	163.0000	SOCKET HEAD SCREW TCE 6X40
[ 10 ]	184.2020	COMPLETE BRAKE CALIPER LEVER

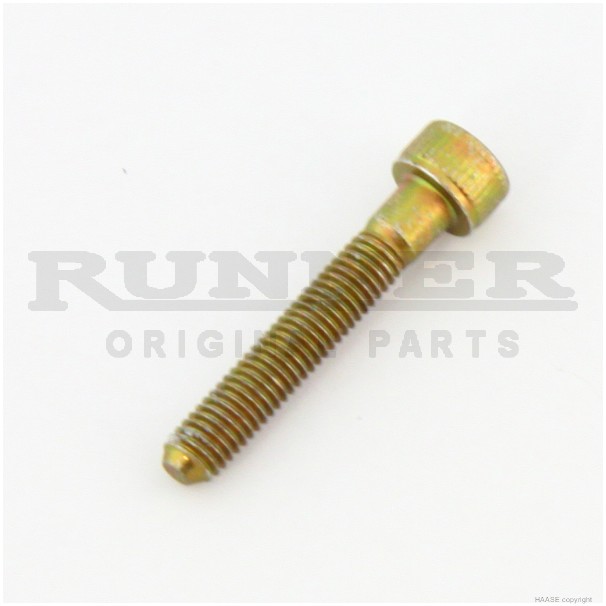

[ 11 ]	019.0088	SOCKET HEAD SCREW TCE 5X30
[ 12 ]	184.2025	PISTON FOR MECHANICAL CALIPER
[ 13 ]	183.8207	PRESSURE SPRING FOR PAD FIXATION

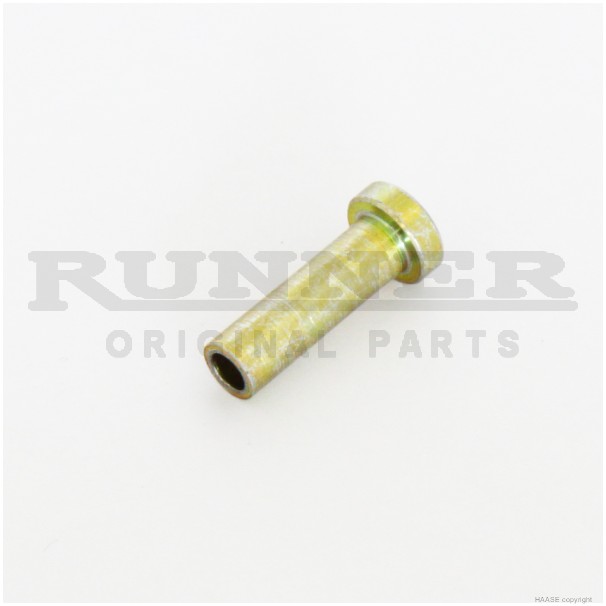

[ 14 ]	183.8208	REAR PAD SCREW TUBE
[ 15 ]	019.0105	SOCKET HEAD SCREW TCE 5X35
