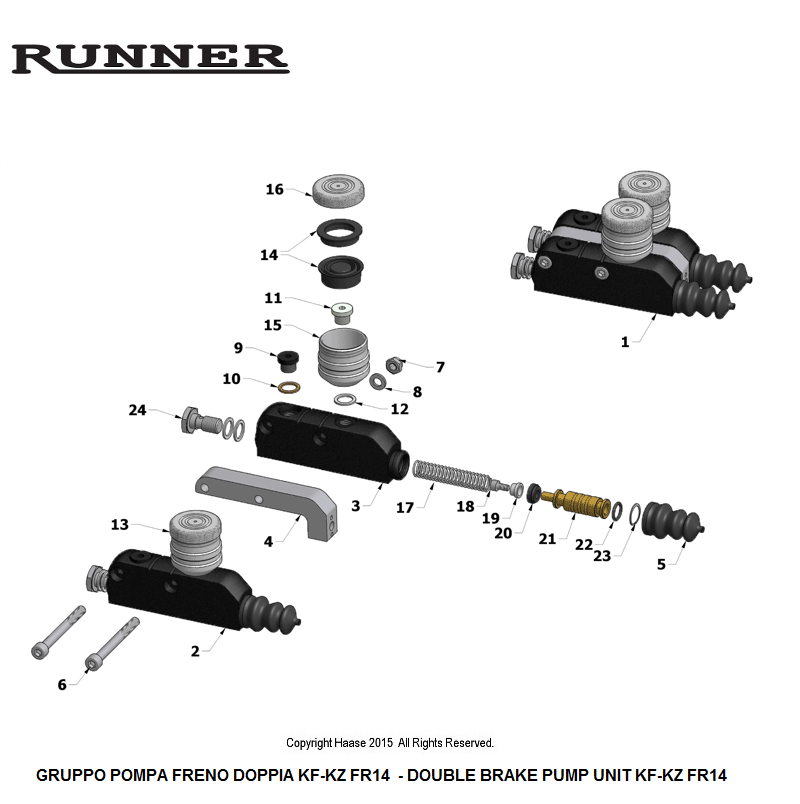

Drawing	Code	Description	Photo
[ 1 ]	181.4000	RUNNER FR14 BRAKE PUMPS SYSTEM COMPLETE WITH RESERVOIR

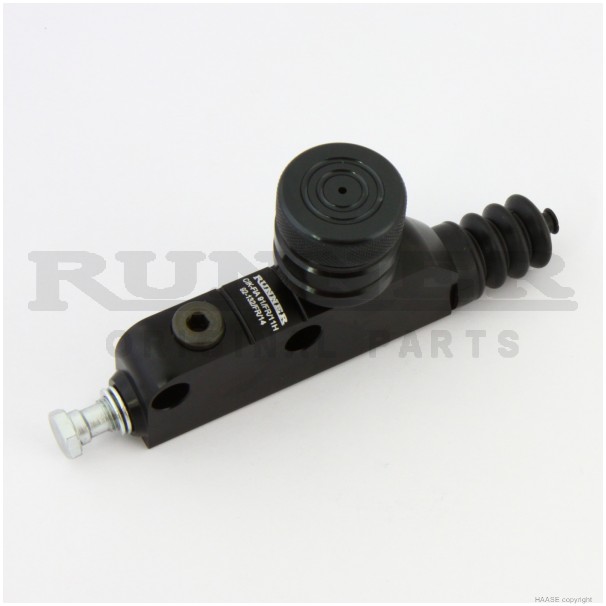

[ 2 ]	181.4010	RUNNER FR14 COMPL. BRAKE PUMP, SINGLE, WITH RESERVOIR

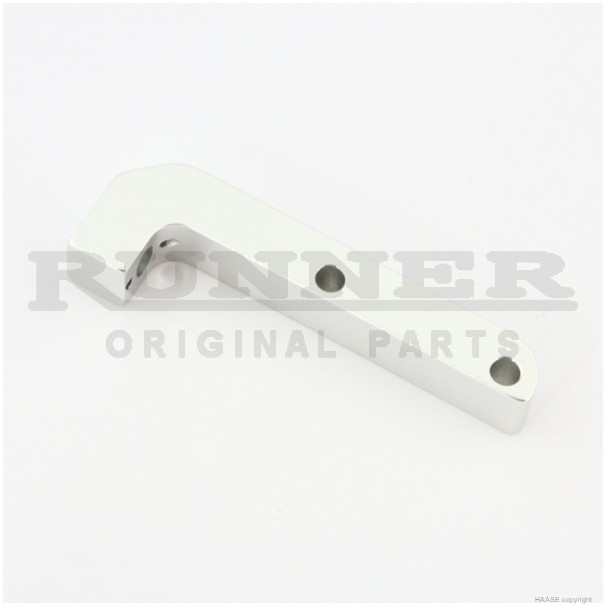

[ 4 ]	181.4030	ALU. SPACER FOR RUNNER DOUBLE BRAKE PUMP
[ 5 ]	181.0120	DUST COVER RUBBER CAP FOR RUNNER PUMP
[ 6 ]	019.0093	SOCKET HEAD SCREW TCE 6X65
[ 7 ]	184.1605	SELF-LOCKING NUT M6 - LOW
[ 8 ]	181.2905	FLAT WASHER 6mm
[ 9 ]	181.2906	SCREW PLUG FOR PUMP BLEEDING
[ 11 ]	181.4040	HOLLOWED CAP TO FIX PUMP TANK
[ 12 ]	181.0164	COPPER GASKET 10X14X1.5
[ 13 ]	181.4060	COMPLETE TANK FOR RUNNER FR14 PUMP

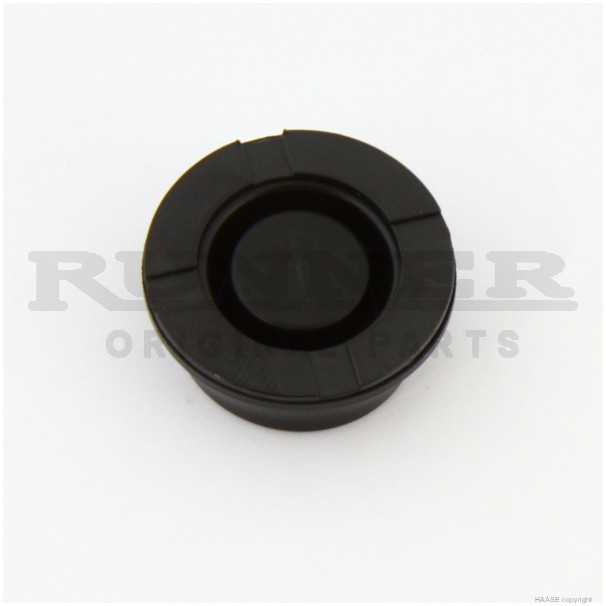

[ 14 ]	181.4070	COMPLETE TANK DIAPHRAGM FOR RUNNER FR14 PUMP

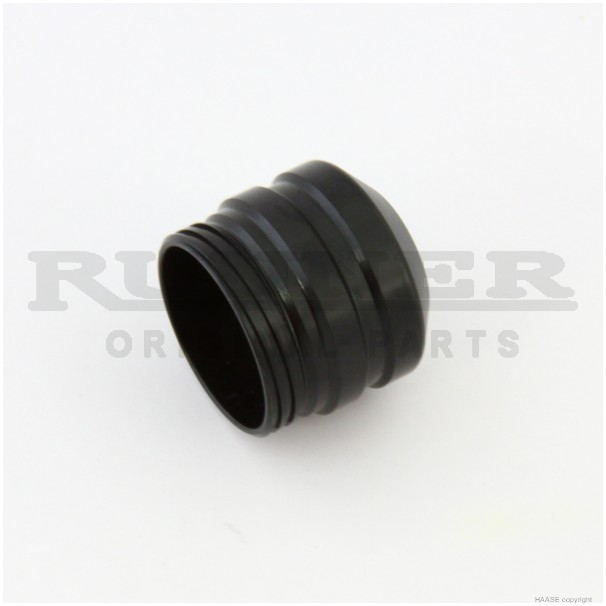

[ 15 ]	181.4080	BARE TANK

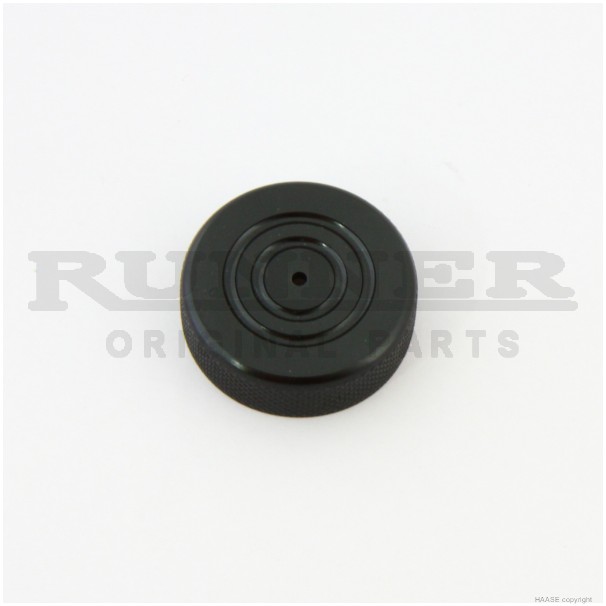

[ 16 ]	181.4090	TANK CAP FOR BRAKE PUMP FR14
[ 17 ]	181.2913	PUMP SPRING
[ 18 ]	019.0106	SOCKET HEAD SCREW TCE 4X6
[ 19 ]	181.4100	SPRING GUIDE BUSH
[ 20 ]	181.2909	MAIN PUMP RUBBER SEAL
[ 21 ]	181.4110	MAIN PISTON 13mm FOR RUNNER FR14 BRAKE PUMP

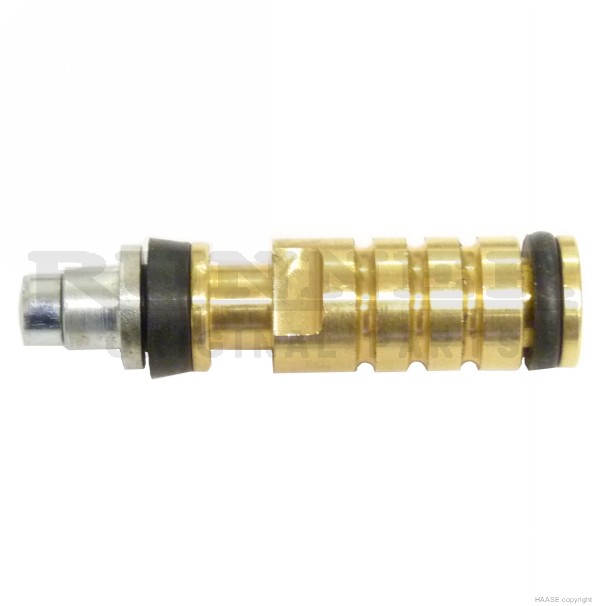

[ 21 ]	181.4111	COMPLETE MAIN PISTON 13mm FOR RUNNER FR14 DOUBLE BRAKE PUMP
[ 22 ]	181.4120	SECONDARY PUMP RUBBER SEAL FOR PUMP FR14
[ 23 ]	181.2912	SEEGER
[ 24 ]	181.0160	SCREW M10X1 FOR BRAKE TUBE FR14 KF-KZ
[ 25 ]	181.4130	GASKET REPAIR KIT FOR FR14 DOUBLE PUMP

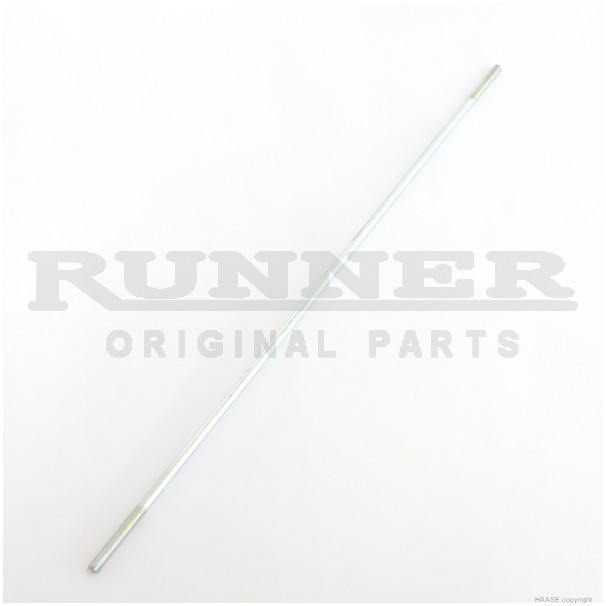

	182.1190	BRAKE PUMP ROD FOR RUNNER DOUBLE PUMP KF-KZ

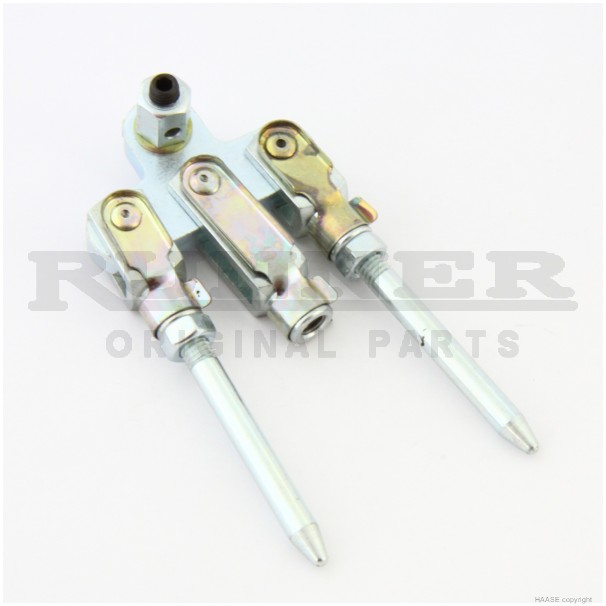

	182.0119	COMPLETE BRAKING DISTRIBUTION KF-TAG

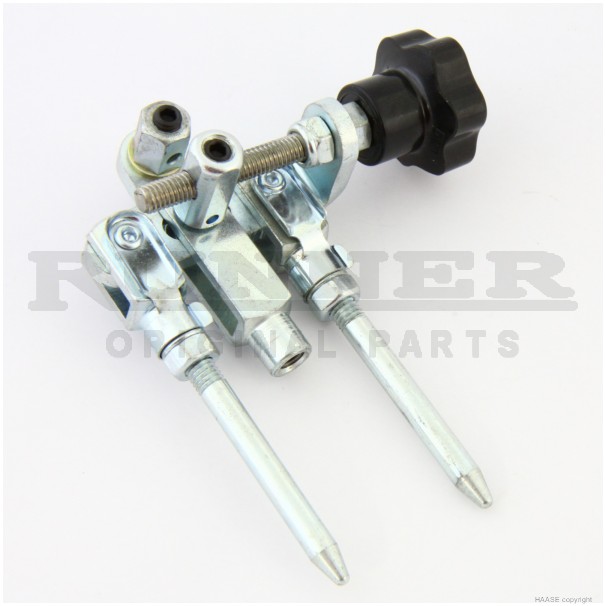

	182.0120	COMPLETE BRAKING DISTRIBUTION KZ-125cc

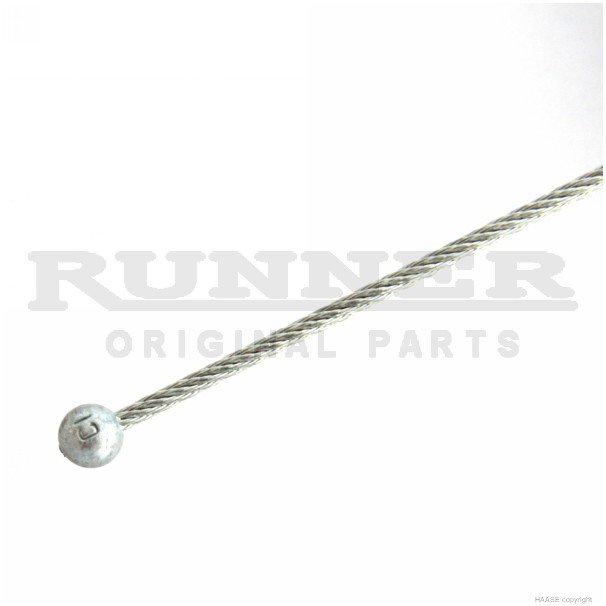

	183.8210	SAFETY CABLE FOR DOUBLE BRAKE PUMP
	150.0000	FORK - SHORT
	150.0010	FORK - LONG
	151.0000	SHORT FORK CLIP
	151.0010	LONG FORK CLIP
	167.0000	FORK COMPLETE, SHORT
	167.0001	FORK COMPLETE, LONG
