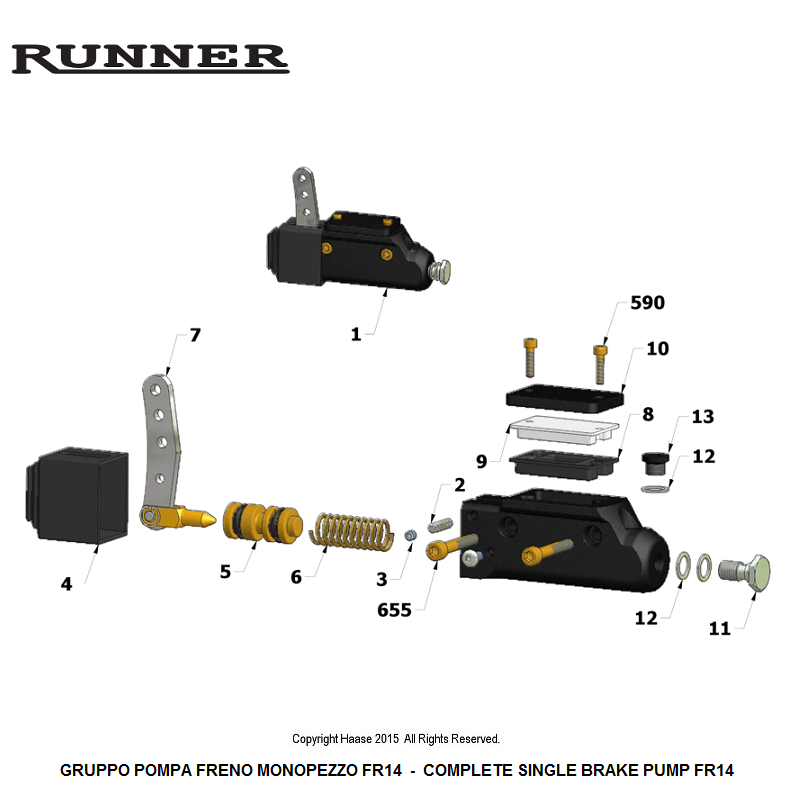

Drawing	Code	Description	Photo
[ 1 ]	143.0000	COMPLETE SINGLE-PUMP MASTER BRAKE CYLINDER 19mm FR14

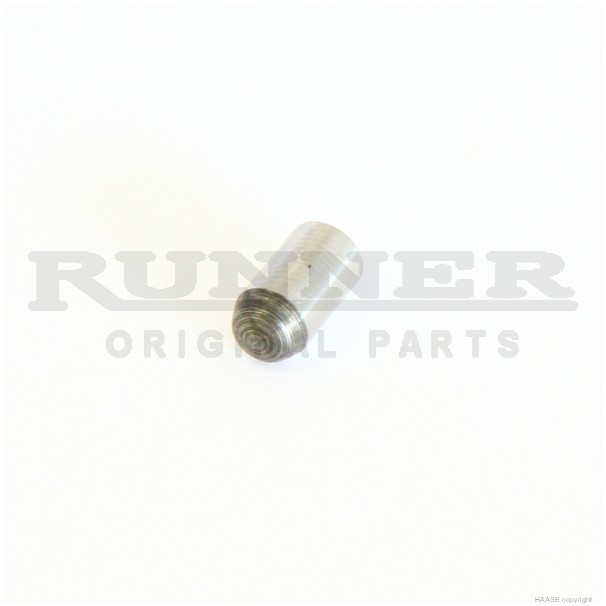

[ 2 ]	143.0010	BRAKE LEVER PIN SINGLE-PUMP FR14

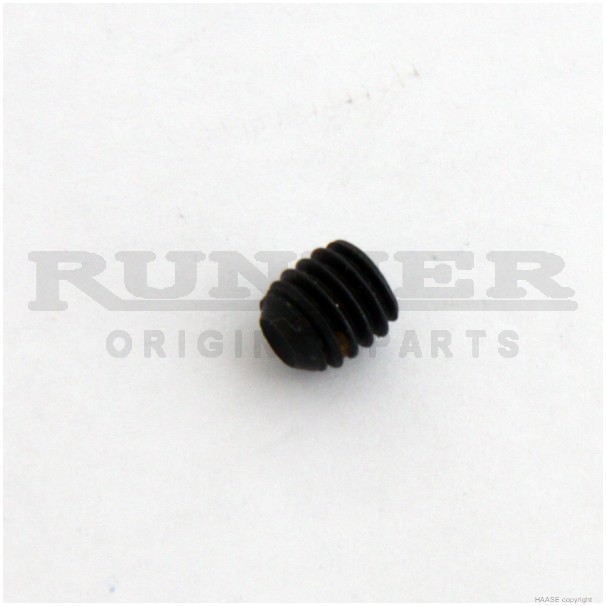

[ 3 ]	182.1200	DOWEL SCREW M6X6

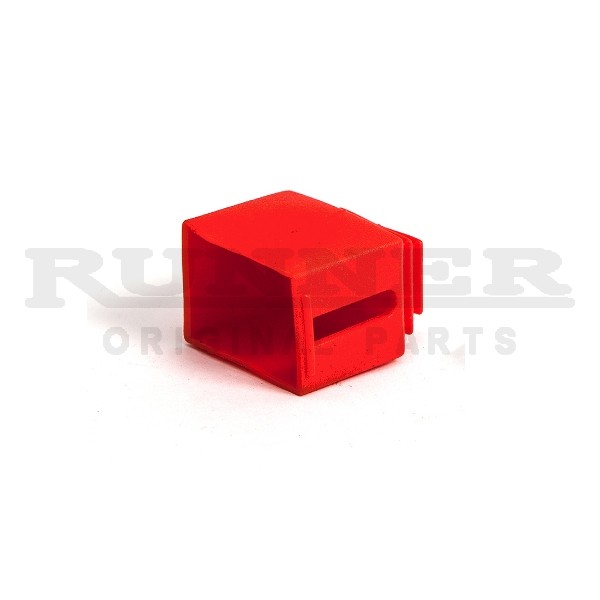

[ 4 ]	143.0030	RUBBER DUST COVER CAP FOR SINGLE-PUMP FR14, EXTERNAL

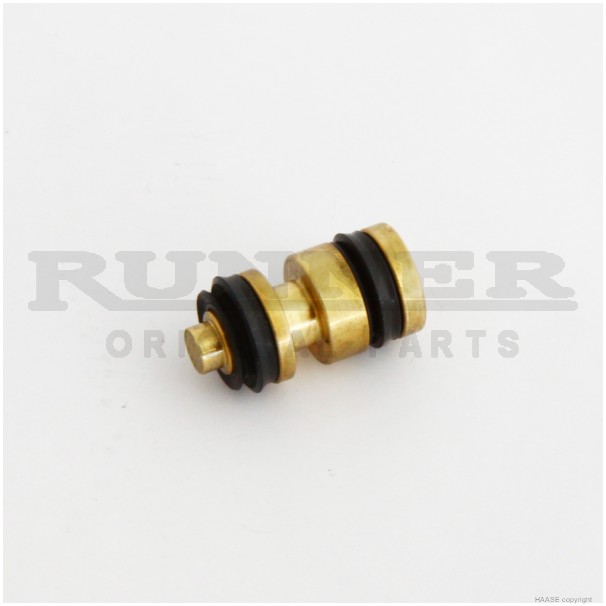

[ 5 ]	143.0040	PISTON 19mm COMPLETE WITH PISTON SEALS

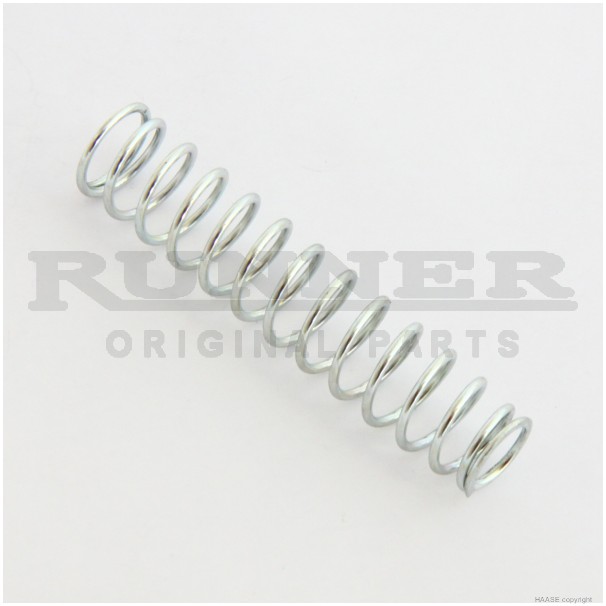

[ 6 ]	143.0050	RETURN SPRING

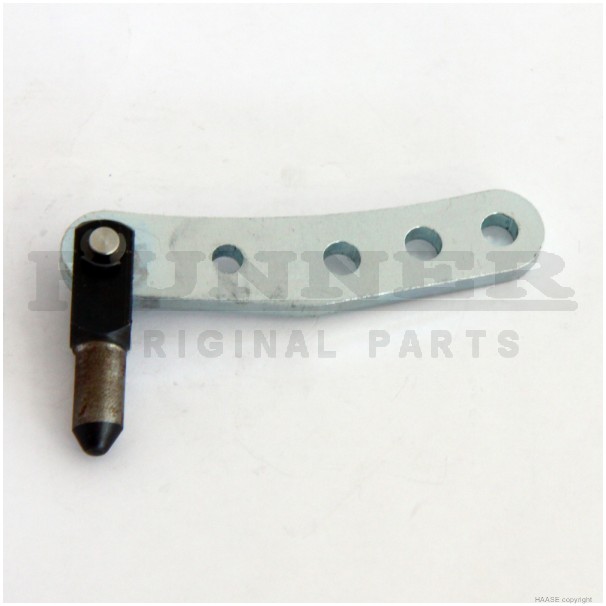

[ 7 ]	143.0060	BRAKE LEVER COMPLETE WITH PISTON PUSHER

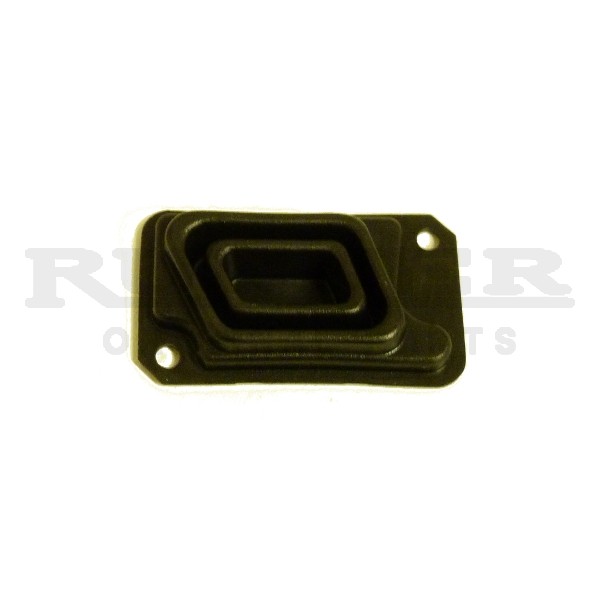

[ 8 ]	143.0070	TANK DIAPHRAGM FOR SINGLE BRAKE PUMP FR14

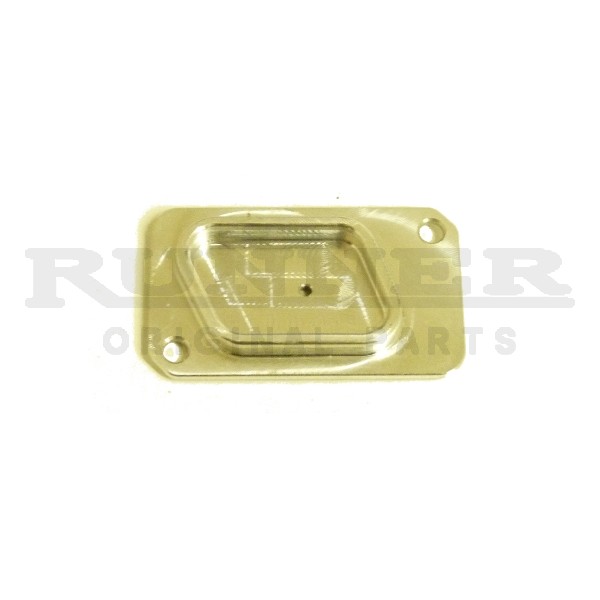

[ 9 ]	143.0080	TANK DIAPHRAGM SUPPORT

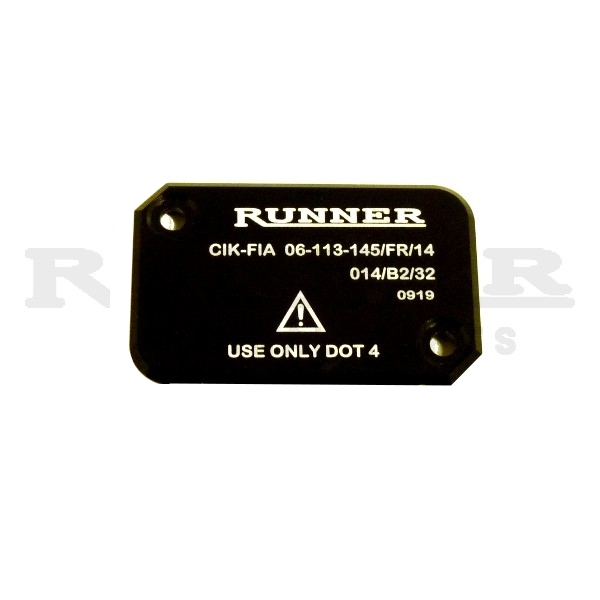

[ 10 ]	143.0090	TANK COVER
[ 11 ]	181.0160	SCREW M10X1 FOR BRAKE TUBE FR14 KF-KZ
[ 12 ]	181.0164	COPPER GASKET 10X14X1.5
[ 13 ]	183.9170	LOCKING PLUG M10X1
[ 14 ]	161.0010	LIP SEAL FOR PISTON 19mm
[ 15 ]	143.0085	GASKET REPAIR KIT FOR FR14 SINGLE PUMP
	143.0100	REAR STEEL BRAKE LINE L=695mm RUNNER-CADET SINGLE-PUMP (baby-mini)

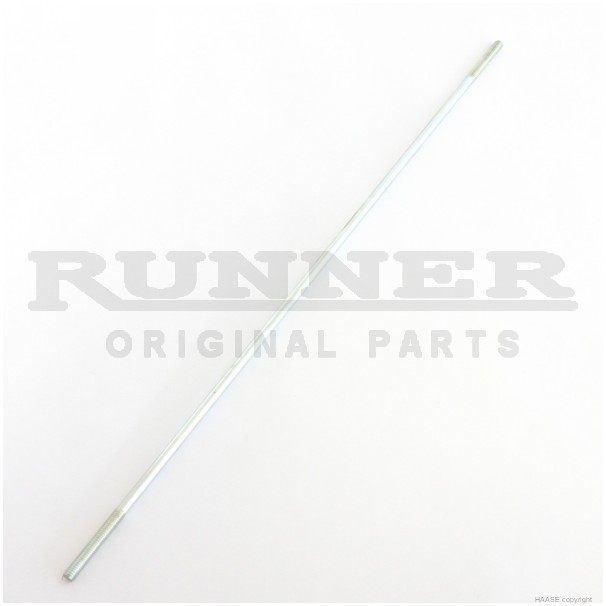

	181.1193	BRAKE PUMP ROD FOR RUNNER SINGLE PUMP - MINIKART L=340mm
	181.1193.1	BRAKE PUMP ROD FOR RUNNER SINGLE PUMP - MINIKART L=240mm
	181.1193.2	BRAKE PUMP ROD FOR RUNNER SINGLE PUMP - MINIKART 2020 L=290mm
	183.8210.1	SAFETY CABLE FOR MINI SINGLE BRAKE PUMP L=350mm

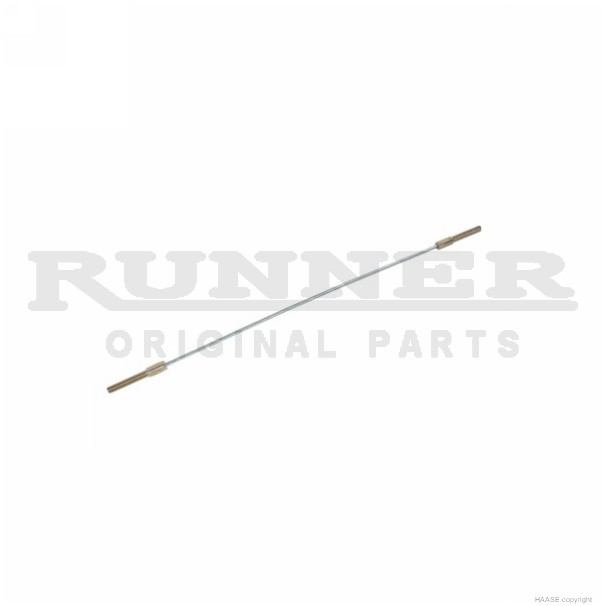

	183.8210.3	SAFETY CABLE FOR MINIKART 2020 SINGLE BRAKE PUMP L=280mm
	168.0000	NUT M6
	150.0000	FORK - SHORT
	150.0010	FORK - LONG
	151.0000	SHORT FORK CLIP
	151.0010	LONG FORK CLIP
	167.0000	FORK COMPLETE, SHORT
	167.0001	FORK COMPLETE, LONG
[ 12 ]	181.0164	COPPER GASKET 10X14X1.5
