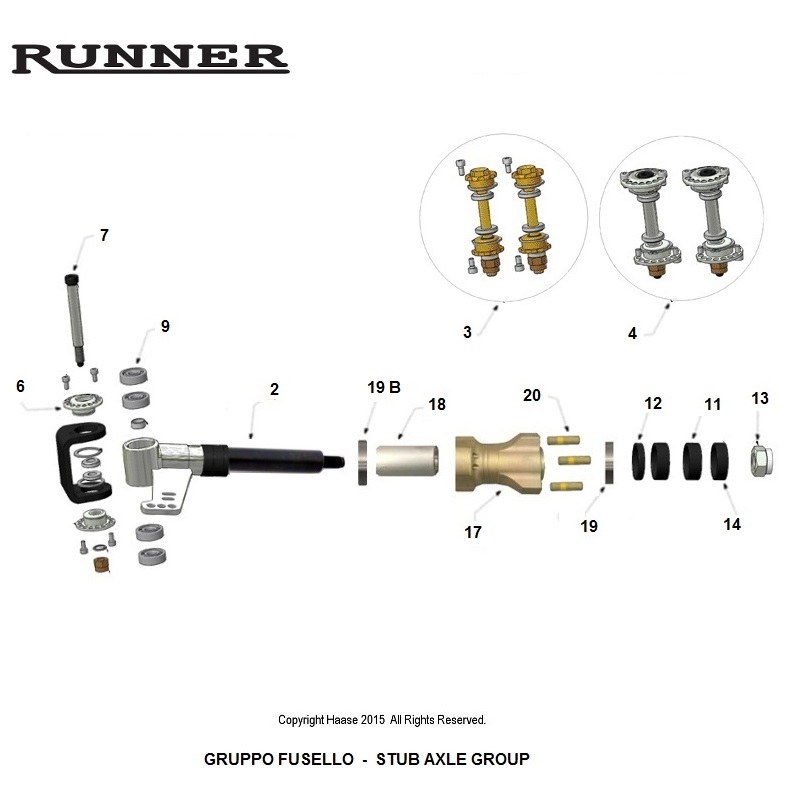

Drawing	Code	Description	Photo
[ 1 ]	104.0020.3	STUB AXLE LEFT MINIKART-100cc SHORT - bearings 10mm
[ 1 ]	104.0036.2	STUB AXLE LEFT KF-100cc 17mm- LONG - bearings 10mm

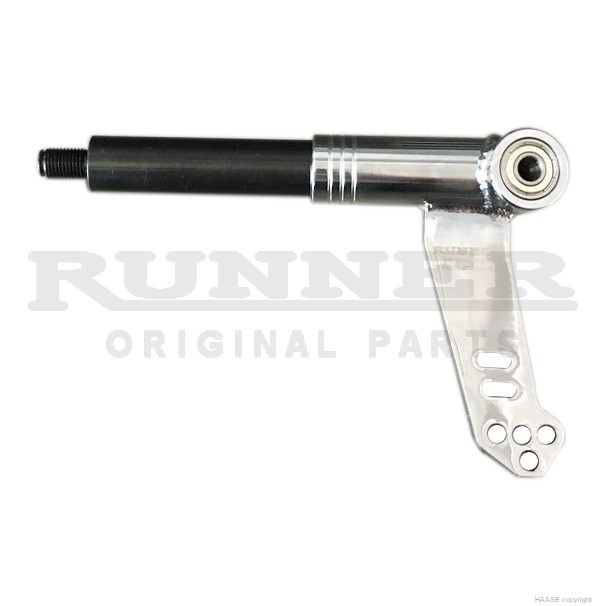

[ 1 ]	104.0140N	STUB AXLE LEFT KF-TAG 25mm FR20 STANDARD -bearings 10mm
[ 1 ]	104.0140H	STUB AXLE LEFT KF-TAG 25mm FR20 RACING -bearings 10mm
[ 1 ]	104.0046	STUB AXLE LEFT KZ-125cc 25mm FR14 STANDARD -bearings 10mm
[ 2 ]	104.0021.3	STUB AXLE RIGHT 60cc-TAG 17mm - SHORT - bearings 10mm
[ 2 ]	104.0037.1	STUB AXLE RIGHT KF-TAG 17mm LONG - bearings 10mm
[ 2 ]	104.0141N	STUB AXLE RIGHT KF-TAG 25mm FR20 STANDARD - bearings 10mm

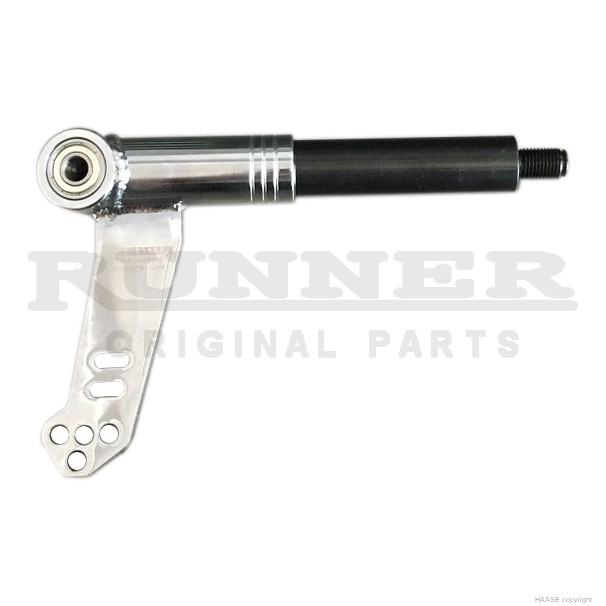

[ 2 ]	104.0141H	STUB AXLE RIGHT KF-TAG 25mm FR20 RACING - bearings 10mm
[ 2 ]	104.0047	STUB AXLE RIGHT KZ-125cc 25mm FR14 STANDARD - bearings 10mm
[ 4 ]	108.0110	COMPLETE CASTER CAMBER BUSHING KIT - 10mm screw - 22mm

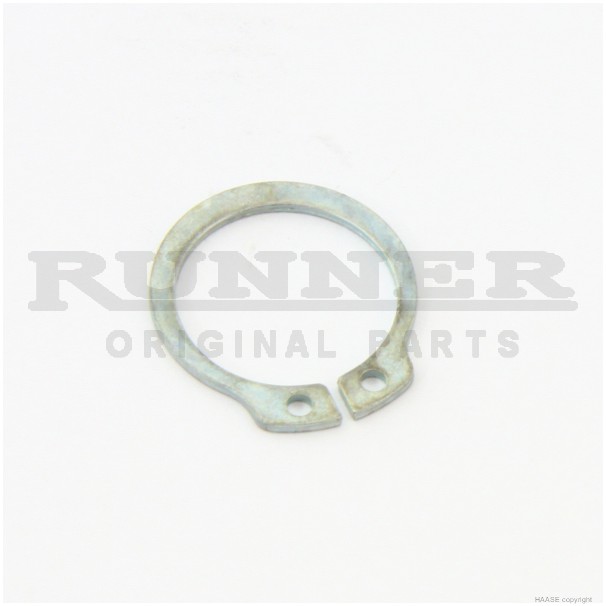

[ 5 ]	108.0021	FIXING SEEGER 20mm FOR STUB AXLE BUSH

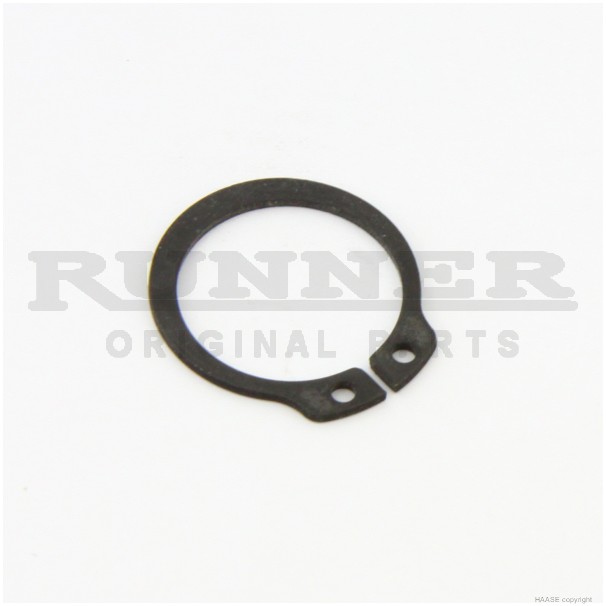

[ 5 ]	108.0145	FIXING SEEGER 22mm FOR STUB AXLE BUSH

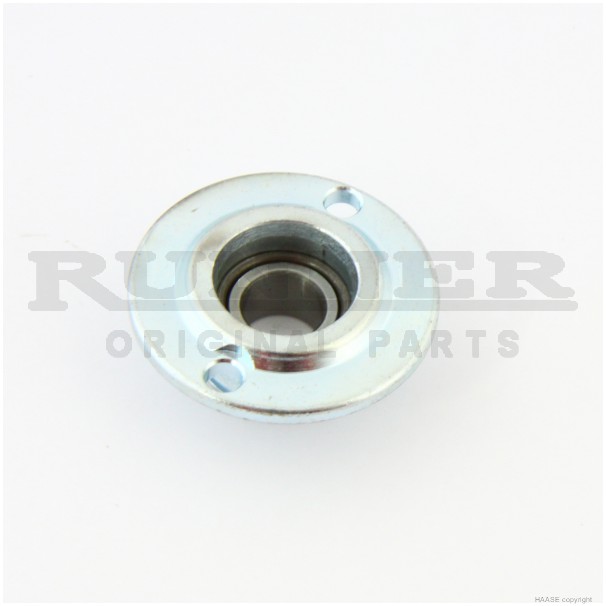

[ 6 ]	108.0155	NORMAL BUSH 22mm - 10mm SCREW

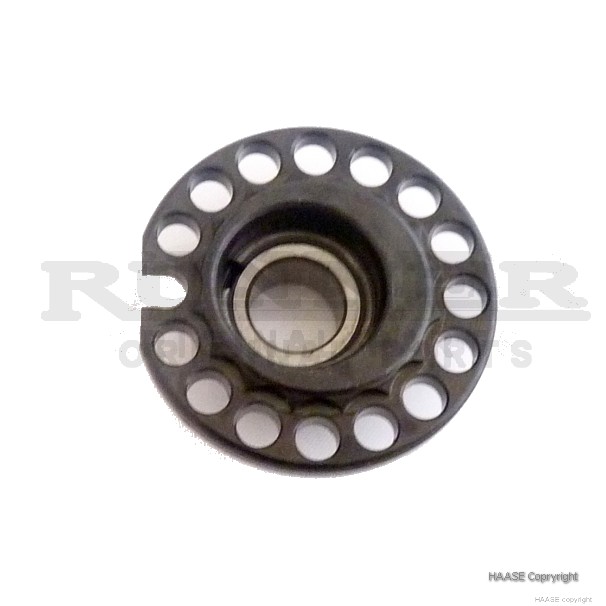

[ 6 ]	108.0160	ECCENTRIC BUSH 22mm - 10mm SCREW - 16 POSITIONS
[ 7 ]	106.0000	HEXAGONAL-HEAD SCREW TE 8X85 FOR STUB AXLE
[ 7 ]	106.0020	TCE SCREW 10X85 FOR STUB AXLE

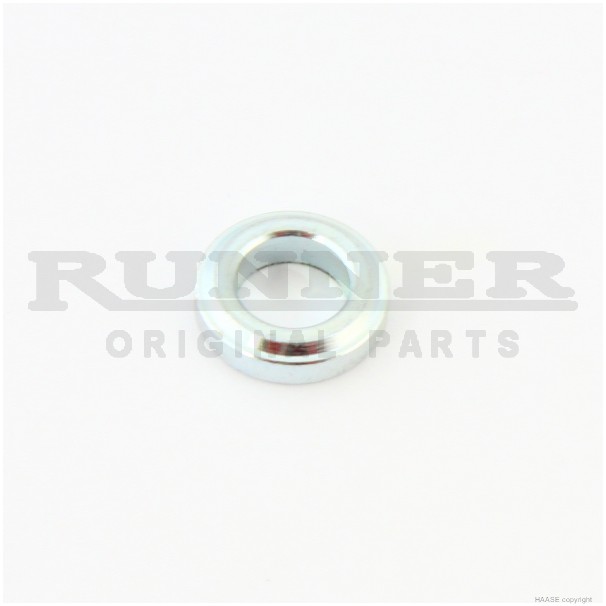

[ 8 ]	106.0035	STUB AXLE SPACER - SCREW 10mm H=4,5mm
[ 8 ]	106.0040	STUB AXLE SPACER - SCREW 10mm H=2,2mm
[ 8 ]	102.0005	SPECIAL SPACER FOR UNIBALL 13X8X3,75mm

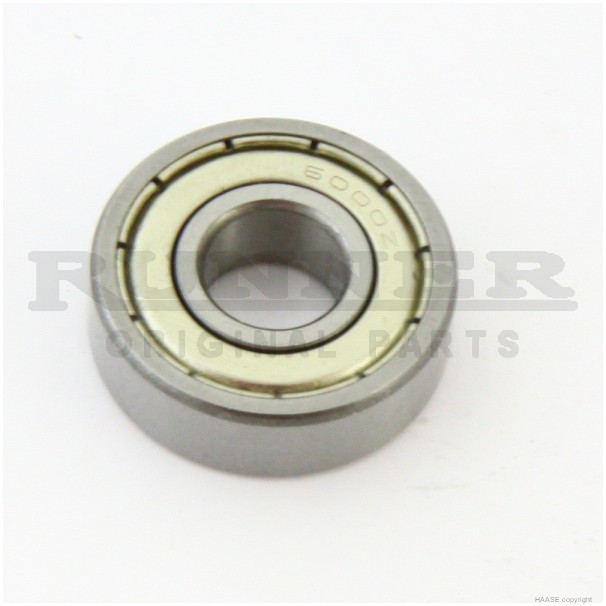

[ 9 ]	109.0020	STUB AXLE BEARING 10x26mm FOR FR14 STUB AXLE

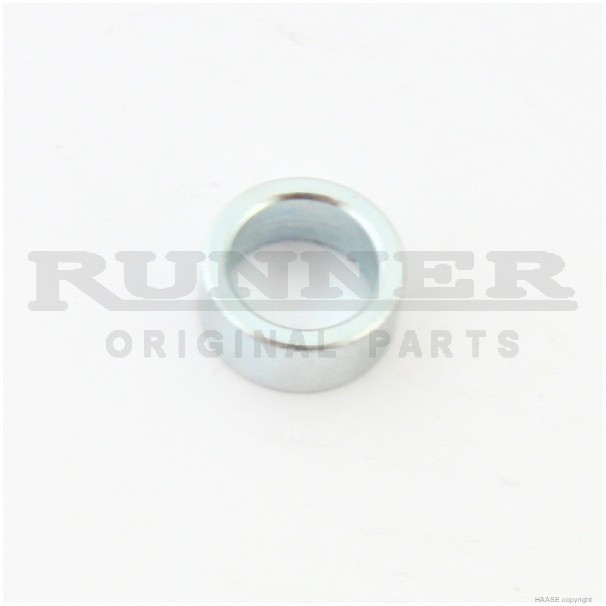

[ 10 ]	110.0020	BEARING SPACER FOR 4 BEARINGS STUB AXLE 10x26mm 26mm 10X15X6mm

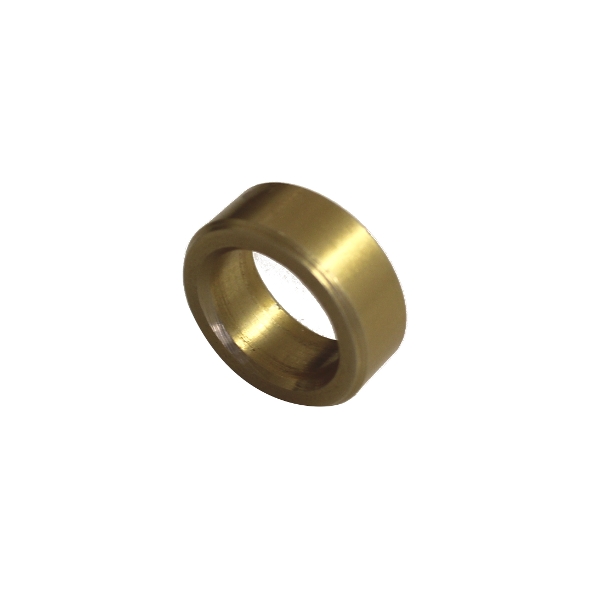

[ 11 ]	112.0012	STUB AXLE SPACER, ALUMINIUM 10mm (for stub axle 17mm)
[ 11 ]	112.0016	STUB AXLE SPACER,ALUMINIUM 10mm (for stub axle 25mm)

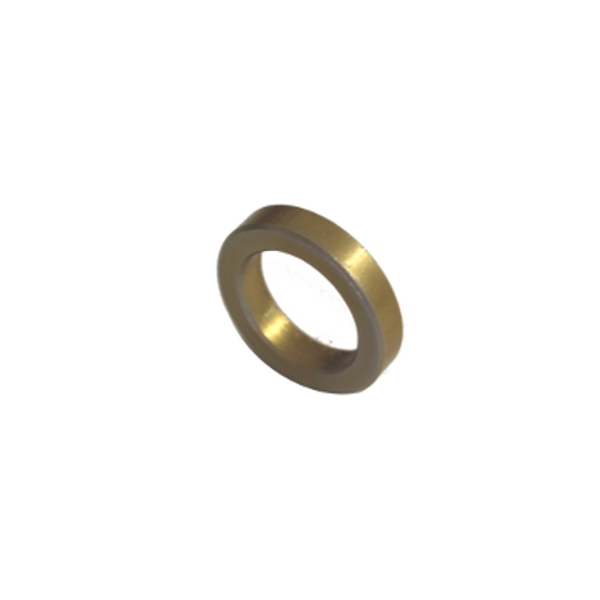

[ 12 ]	112.0013	STUB AXLE SPACER, ALUMINIUM 5mm (for stub axle 17mm)
[ 12 ]	112.0017	STUB AXLE SPACER,ALUMINIUM 5mm (for stub axle 25mm)

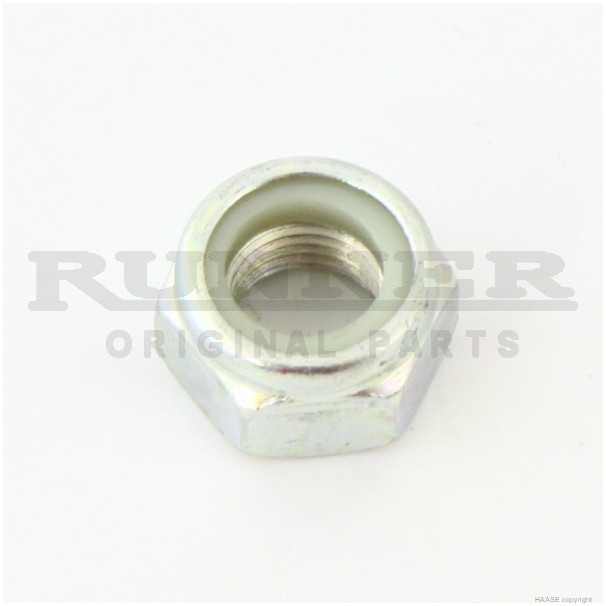

[ 13 ]	113.0000	SELF-LOCKING NUT M14X1,5 - LOW
[ 14 ]	113.0010	SPACERS WASHER LOCK ALUMINIUM(for stub axle 25mm)
[ 17 ]	114.0040	FRONT WHEEL BOSS, L=70mm FOR STUB AXLE 17mm
[ 17 ]	114.0042	FRONT WHEEL BOSS, KF-OK-TAG MAGNESIUM L=95mm FOR STUB AXLE 25mm
[ 17 ]	114.0050	FRONT WH/BOSS KZ-DD2 MAGNESIUM L=95X25mm for front brakes FR11-14
[ 18 ]	114.0110	BEARING SPACER FOR FRONT WHEEL BOSS 25mm FR14 48X30X25mm ALU

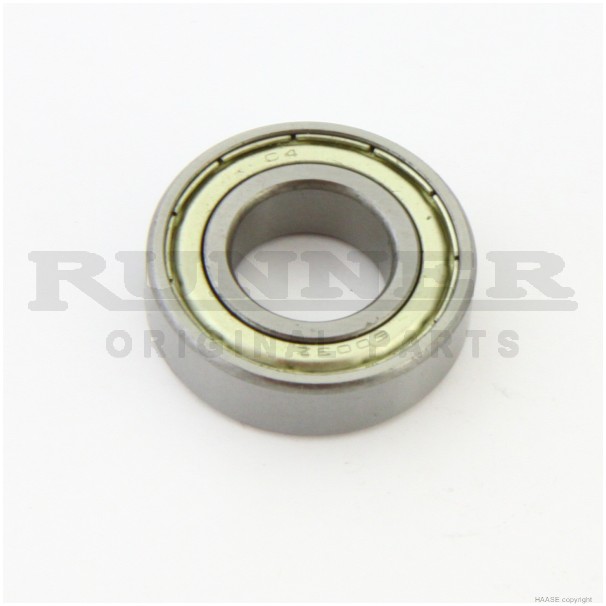

[ 19 ]	072.0010	BEARING 17X35mm C4
[ 19 ]	072.0011	BEARING 25X37mm C4
[ 19B ]	072.0015	BEARING 25X42mm C4

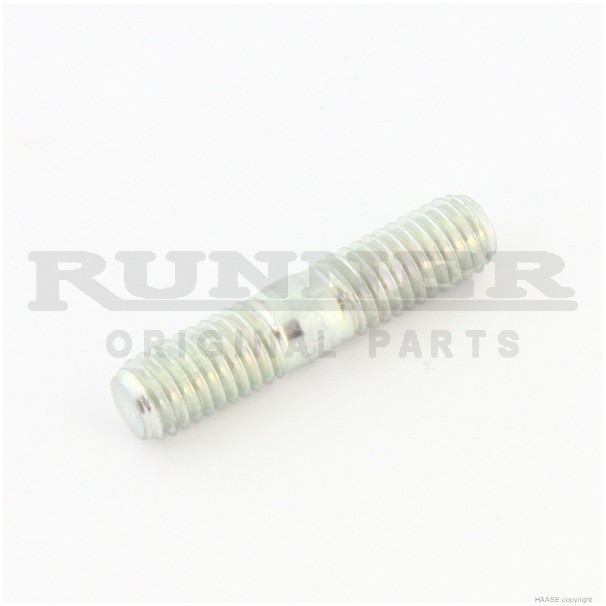

[ 20 ]	115.0005	STUD-BOLT FOR WHEEL BOSS
[ 21 ]	115.0002	TE WHEEL NUT
