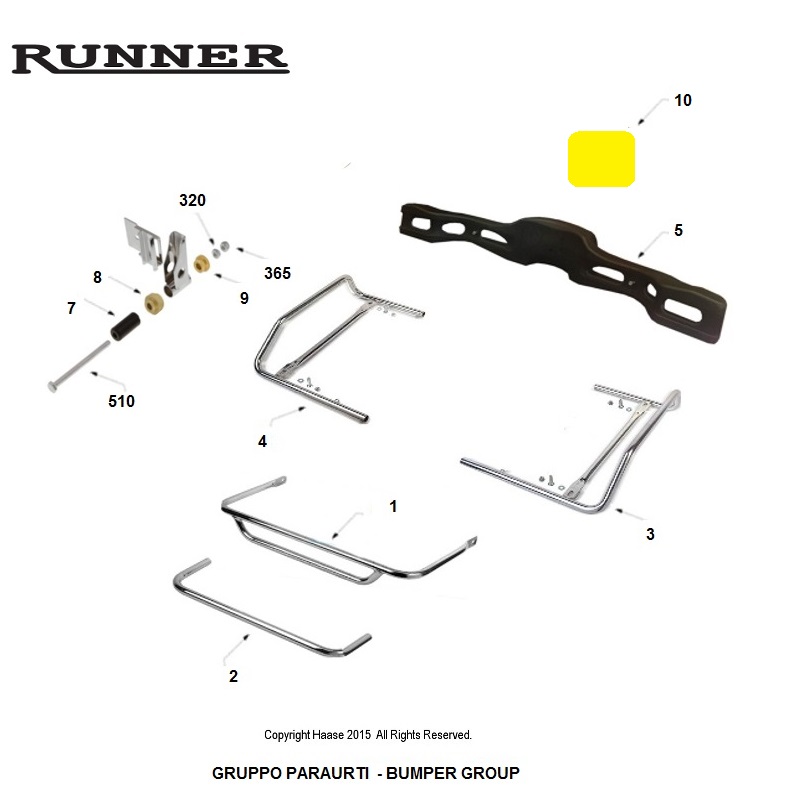

Drawing	Code	Description	Photo
[ 1 ]	036.0035	FRONT BUMPER CIK TYPE BABY - MINIKART - JUNIOR
[ 1 ]	036.0025	FRONT BUMPER HIGH CIK TYPE KF-KZ
[ 2 ]	036.0B26	FRONT BUMPER LOW CIK TYPE KF-KZ
[ 2 ]	036.0B29	FRONT BUMPER LOW CIK TYPE MINIKART 2020
[ 3 ]	038.0008.1	SIDE BUMPER BABY-KART - LEFT (WHEELBASE 800mm)

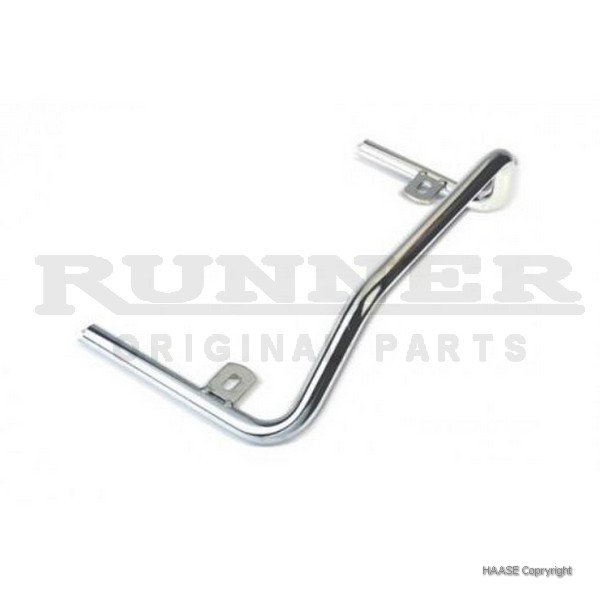

[ 3 ]	038.0016	SIDE BUMPER MINIKART - LEFT MK14
[ 3 ]	038.0016.2	SIDE BUMPER MINIKART - LEFT MK20
[ 3 ]	038.0048.S	506-DUO SIDE BUMPER LEFT

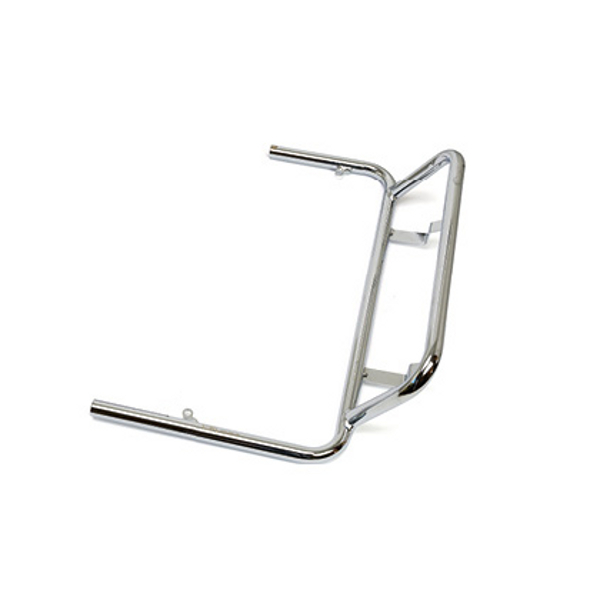

[ 3 ]	038.0049.S	507 SIDE BUMPER LEFT
[ 4 ]	038.0009.1	SIDE BUMPER BABY-KART - RIGHT (WHEELBASE 800mm)

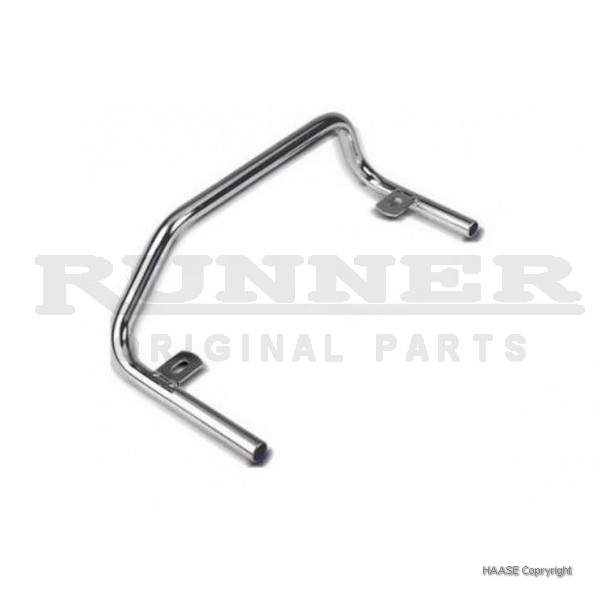

[ 4 ]	038.0017	SIDE BUMPER MINIKART - RIGHT MK14
[ 3 ]	038.0017.2	SIDE BUMPER MINIKART - RIGHT MK20
[ 3 ]	038.0048.D	506-DUO SIDE BUMPER RIGHT

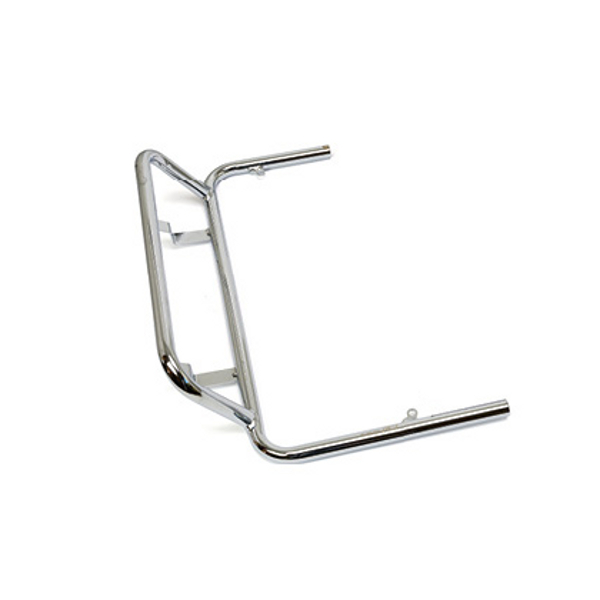

[ 3 ]	038.0049.D	507 SIDE BUMPER RIGHT
[ 5 ]	039.0005	REAR BUMPER FOR BABY-KART (WHEELBASE 800mm)

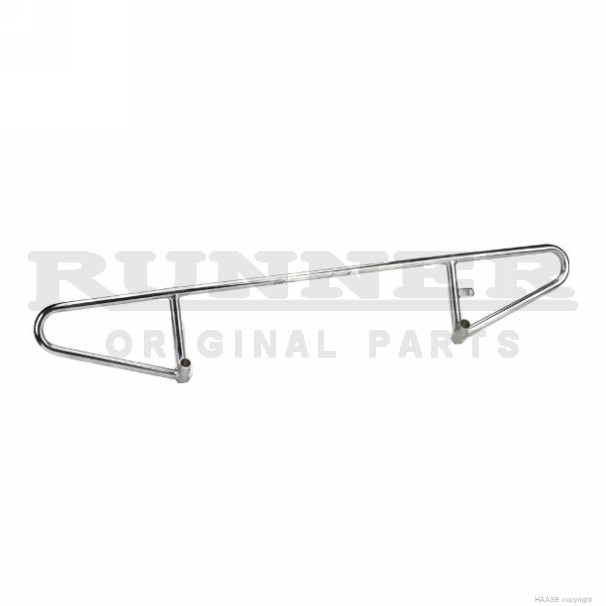

[ 5 ]	039.0019	REAR BUMPER, STEEL, KF-KZ GB TYPE
[ 5 ]	039.0037.5	REAR PLAST. PROTECT. MK20 - MINIKART
[ 5 ]	039.0060	REAR PLASTIC PROTECTION CIK-KG, BARE

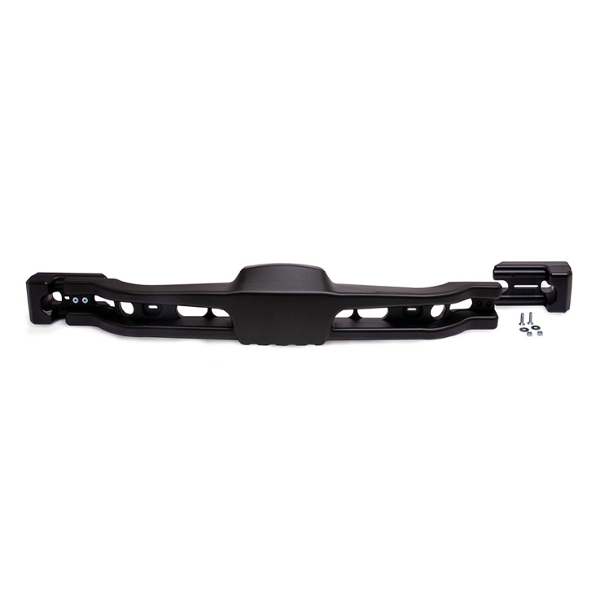

[ 5 ]	039.0061.2	ADJUST. C3 CIK-FIA REAR PLASTIC PROTECTION, BARE

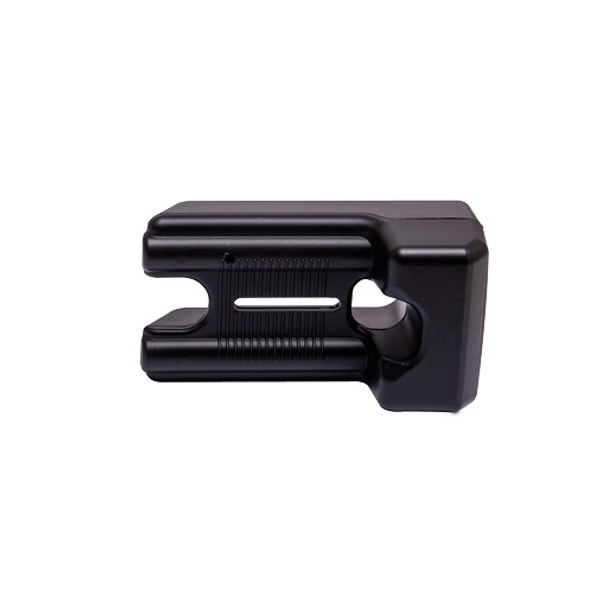

[ 5 ]	039.0061.3	ADJUST. C3 CIK-FIA REAR PLASTIC PROTECTION SINGLE PART
	039.0065	FIXING KIT FOR KG REAR PLASTIC PROTECTION (BRACKETS ONLY)
	039.0065.5	FIXING KIT FOR MK20 REAR PLASTIC PROTECTION (BRACKETS ONLY)

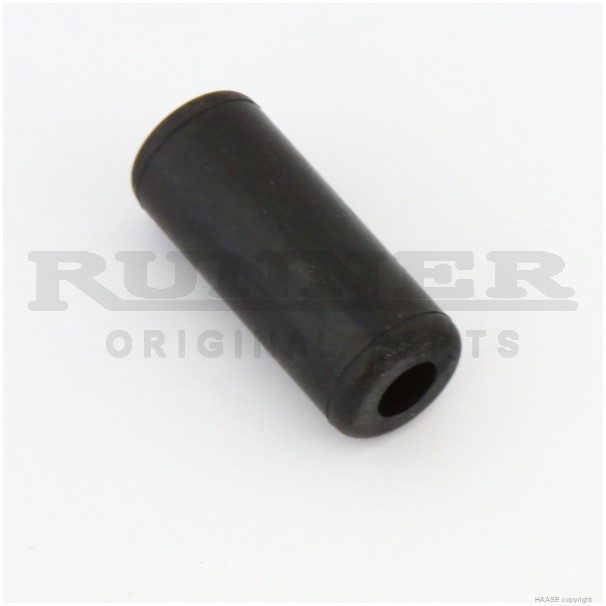

[ 7 ]	061.0010	RUBBER TUBE 23mm FOR REAR BUMPER

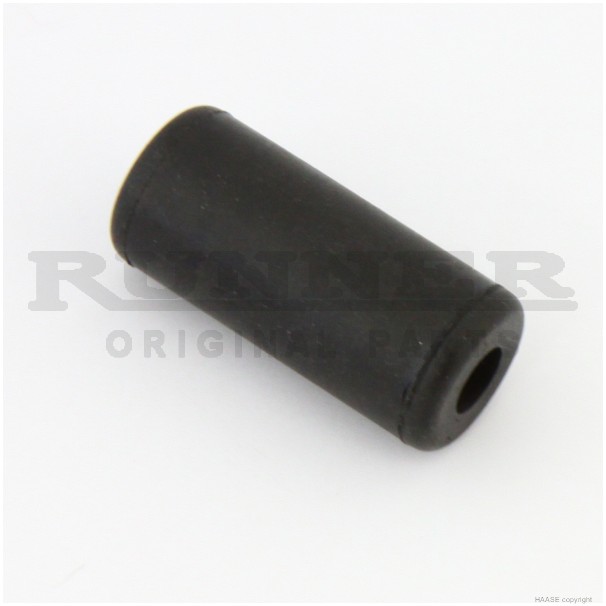

[ 7 ]	061.0011	RUBBER TUBE 25mm FOR REAR BUMPER

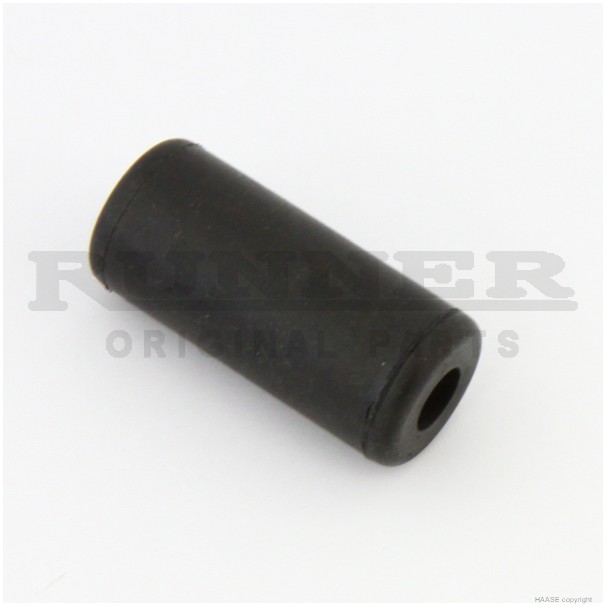

[ 7 ]	061.0012	RUBBER TUBE 27mm FOR REAR BUMPER

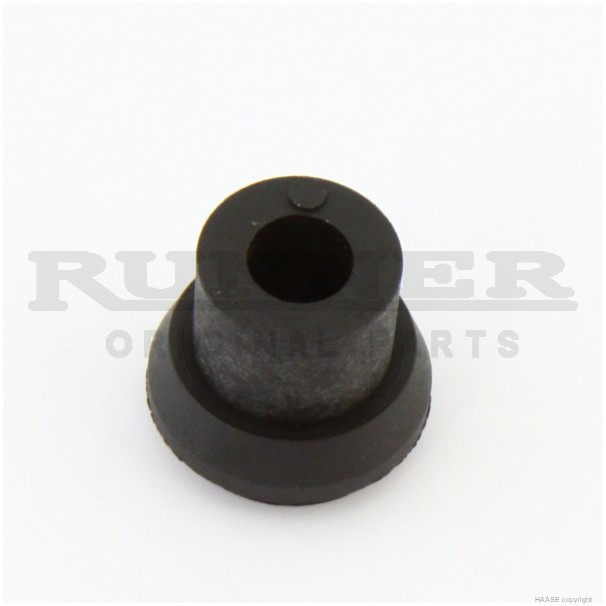

[ 8 ]	062.0010	INTERNAL BUSHING, NYLON, FOR 28mm TUBE

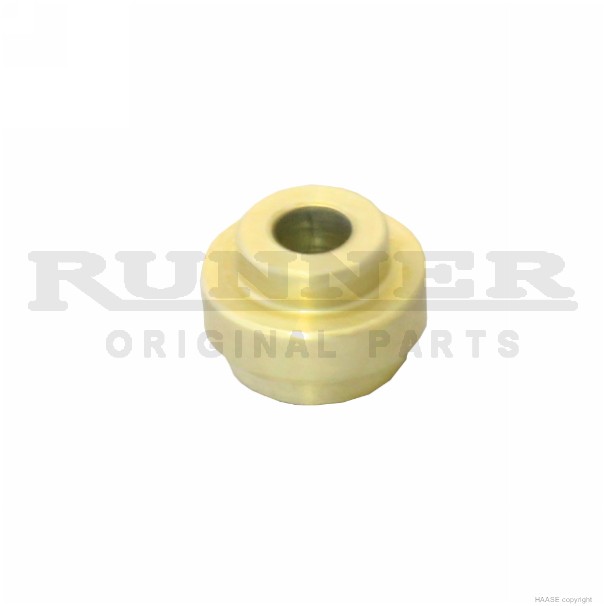

[ 8 ]	062.0012	INTERNAL BUSHING, ALU. ANOD, FOR 30mm TUBE

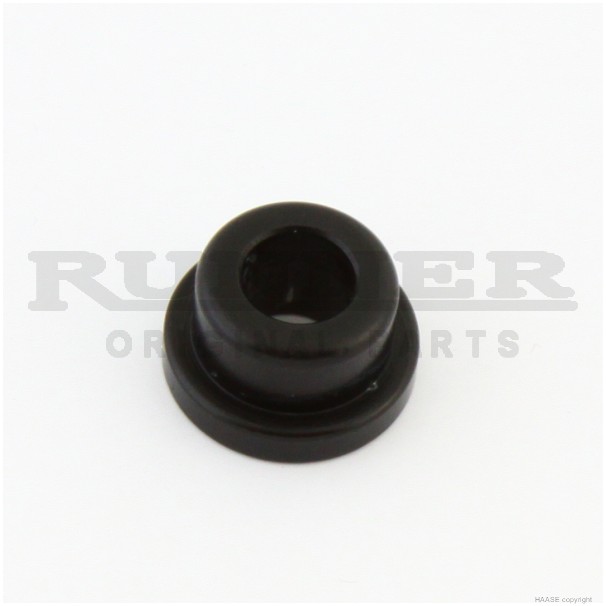

[ 9 ]	063.0012	EXTERNAL BUSHING, ALUM. BLACK ANODIZED

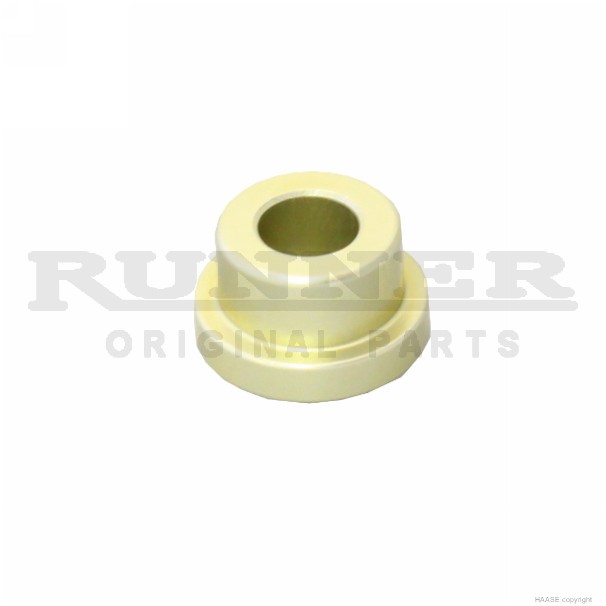

[ 9 ]	063.0015	EXTERNAL BUSHING, ALUM. MAGNESIUM ANODIZED
	063.0020	COMPL. FIXING KIT RUBBERS/NUTS/BOLTS FOR 28mm REAR BUMPER
	063.0030	COMPL. FIXING KIT RUBBERS/NUTS/BOLTS FOR 30mm REAR BUMPER

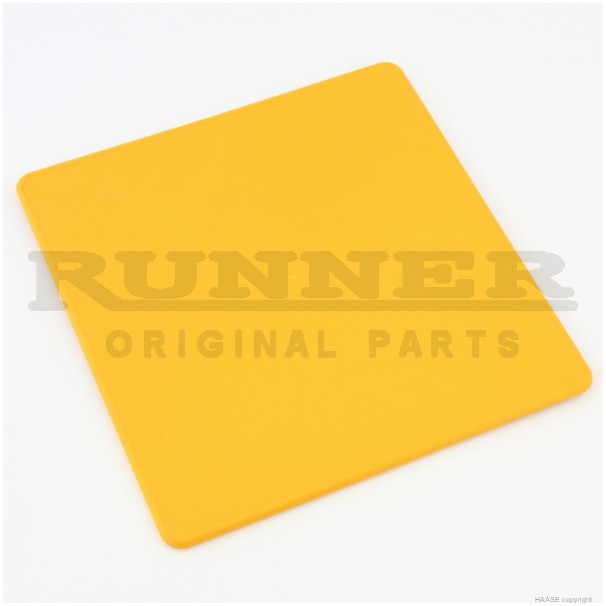

[ 10 ]	065.0010	PLASTIC NUMBER PLATE COL. YELLOW
