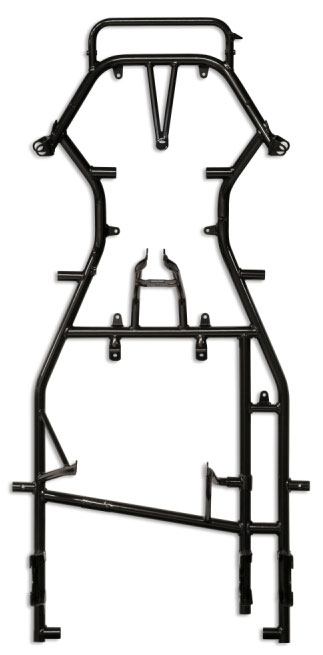

Junior chassis
Junior under 120 Kg technical data sheet

Main frame tubing:Cr-Mo steel 28mm
Wheelbase:1010mm - 1020mm
Rear axle:30 or 40 Ø mm, black, with 2 positions adjustable ride height
Braking system:runner - CADET
Brake lines:Braided steel, silver
Brake disk:Floating rear disk, 160 mm Ø, 4mm thickness
Rear brake caliper:runner CADET FR14
Brake pump:runner CADET FR14 Double circuit brake master cylinder with oil recovery thank
stub axle:17mm Ø with 8mm or 10mm precision ground king-pin bolt
Steering wheel:320mm Ø leather with embroidery
Wheels:Aluminium 180-130mm
Chassis set up:
  • 16 positions adjustable caster/camber pills
  • front ride height
  • adjustable Ackerman
  • complete front stabilizer
Features:
  • Magnesium sprocket carrier and brake disk hub
  • Exaust holder bracket with adjustable height and rotation
  • Bearing axle locking adjustment screw
  • Smooth running axle bearings
Fuel tank:Removable 5 lt.
Seat:Flat bottom, light weight, clear fiberglass
Bodywork:KG homologated
Graphics:Complete set high thickness
Rear bumper:Adjustable rear plastic protection
Options at extra charge:
  • Stub axle 25mm with 10mm ground king-pin bolt
  • Front wheel hubs
  • Rear torsion bar
  • Front hand braking system Runner 91/FR/11H
  • Runner cadet single-brake pump FR14
  • Self ventilated brake disk 160x11mm
  • Runner KF brake system FR14
  • Closed type chain guard
  • Aluminium pedals
  • Adjustable feet support
  • Magnesium engine mount with clamps


junior chassis
