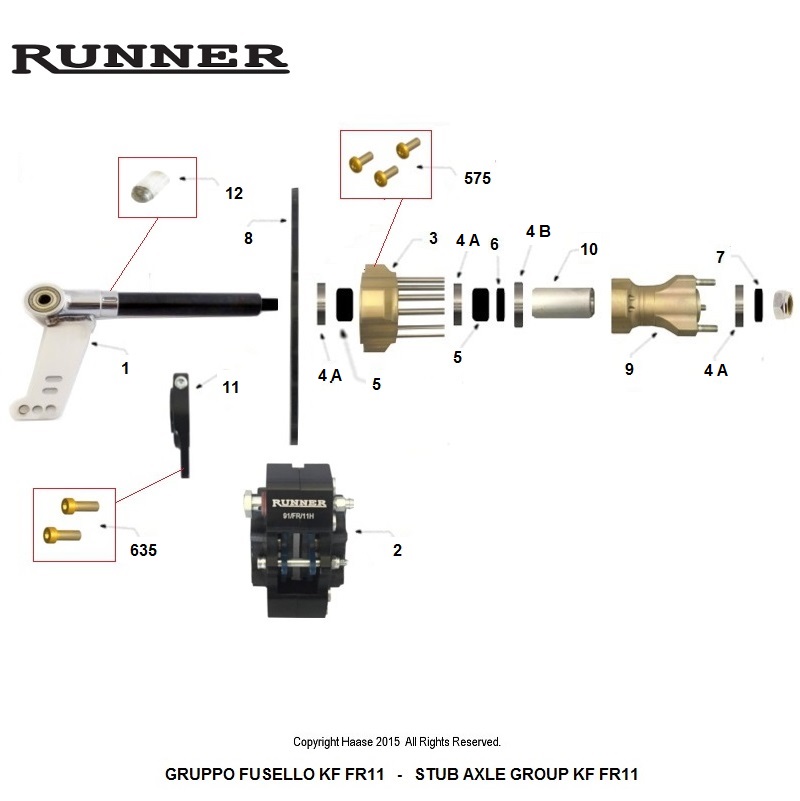

Drawing	Code	Description	Photo

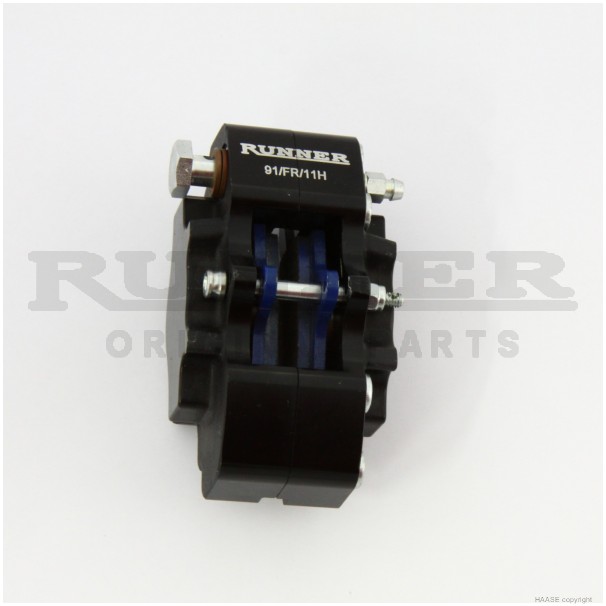

[ 2 ]	186.3000	HYDRAULIC FRONT BRAKE CALIPER RUNNER FR11 KF, RIGHT, COMPLETE

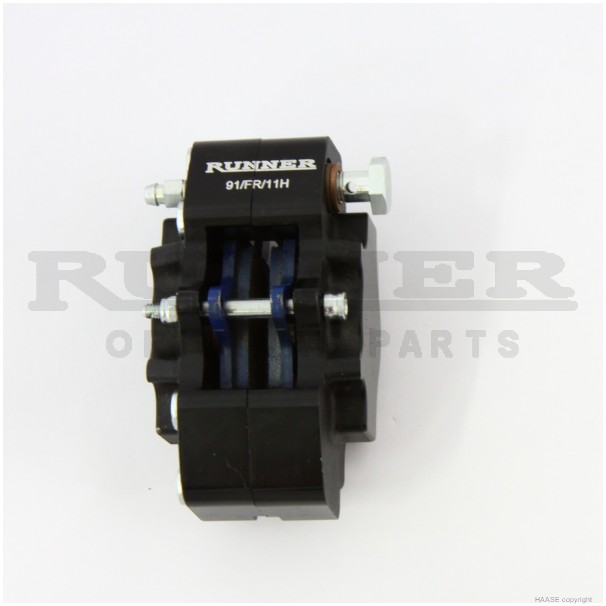

[ 2 ]	186.3001	HYDRAULIC FRONT BRAKE CALIPER RUNNER FR11 KF, LEFT, COMPLETE

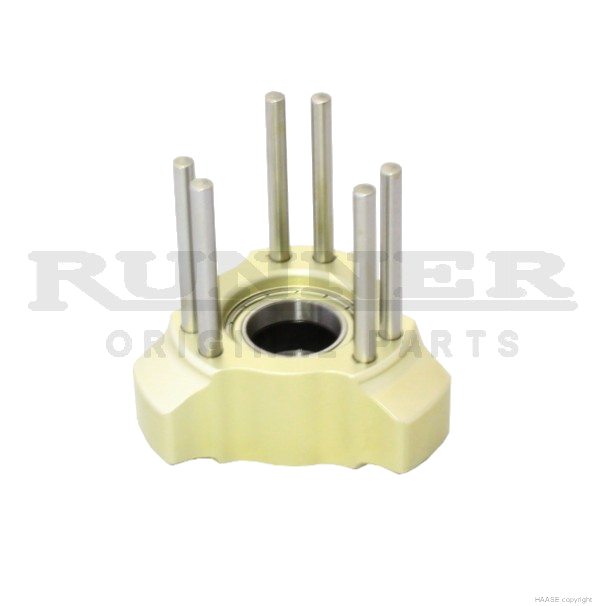

[ 3 ]	203.1011	FRONT BRAKE DISK HUB FOR FIXED BRAKE DISC
[ 4A ]	072.0011	BEARING 25X37mm C4
[ 4B ]	072.0015	BEARING 25X42mm C4
[ 5 ]	112.0016	STUB AXLE SPACER,ALUMINIUM 10mm (for stub axle 25mm)
[ 6 ]	112.0017	STUB AXLE SPACER,ALUMINIUM 5mm (for stub axle 25mm)
[ 7 ]	113.0010	SPACERS WASHER LOCK ALUMINIUM(for stub axle 25mm)

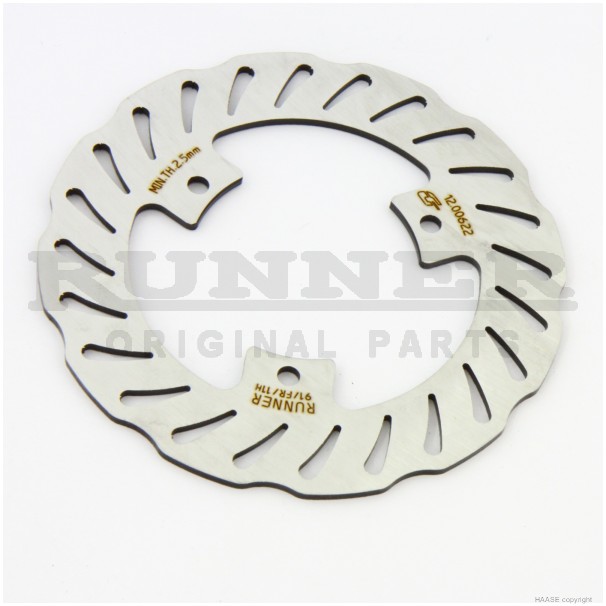

[ 8 ]	201.0010	FRONT BRAKE DISK 150mm KF FR11
[ 9 ]	114.0050	FRONT WH/BOSS KZ-DD2 MAGNESIUM L=95X25mm for front brakes FR11-14
[ 10 ]	114.0110	BEARING SPACER FOR FRONT WHEEL BOSS 25mm FR14 48X30X25mm ALU

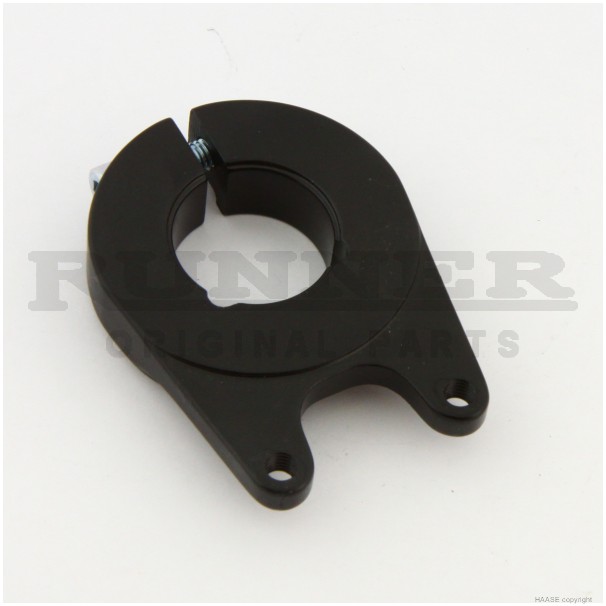

[ 11 ]	181.4095	ALUMINIUM SUPPORT FOR FRONT BRAKE CALIPER KF RUNNER FR11

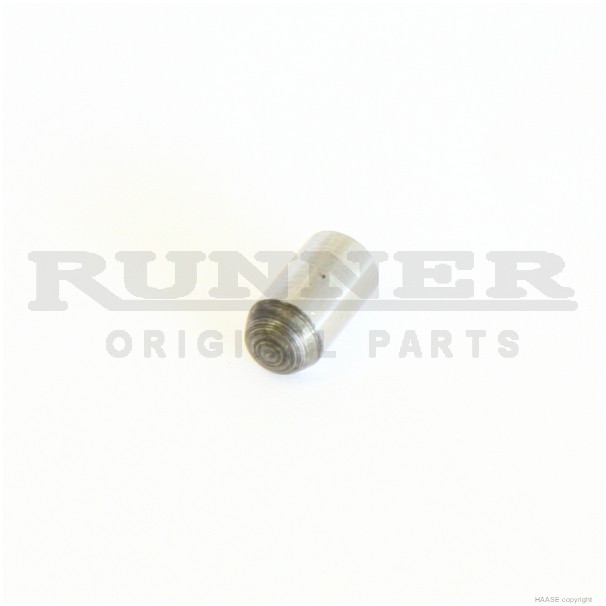

[ 12 ]	181.4098	LOCKING PIN 5X10 FOR FRONT CALIPER SUPPORT KF RUNNER FR11
