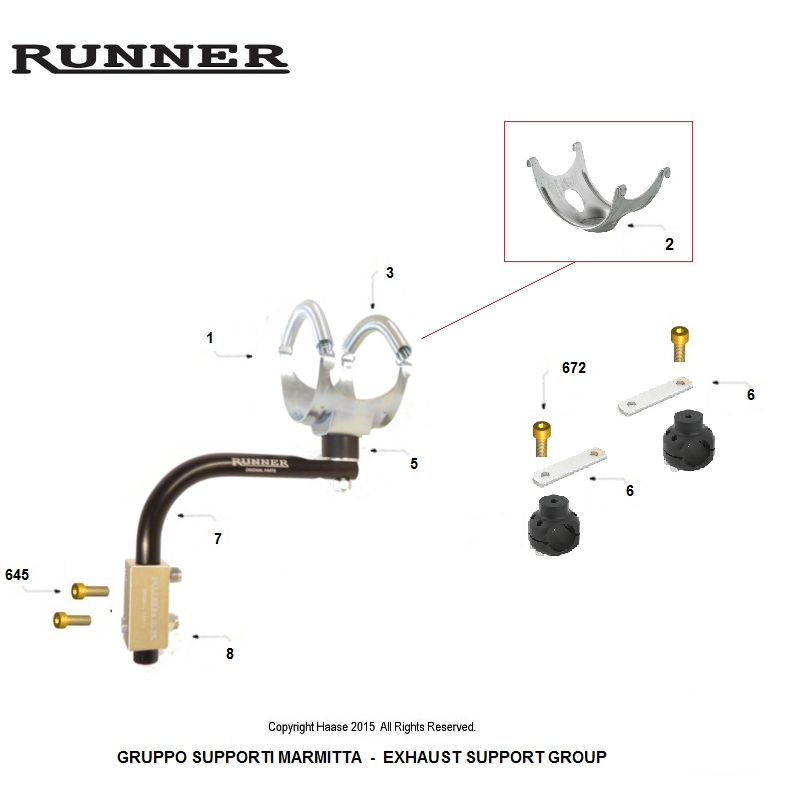

Drawing	Code	Description	Photo
[ 1 ]	054.0011	SILENCER HOLDER, COMPLETE

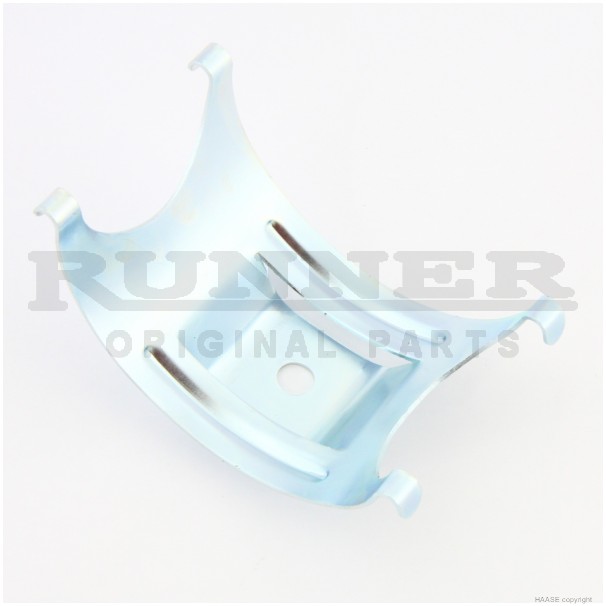

[ 2 ]	055.0011	SILENCER HOLDER, BARE

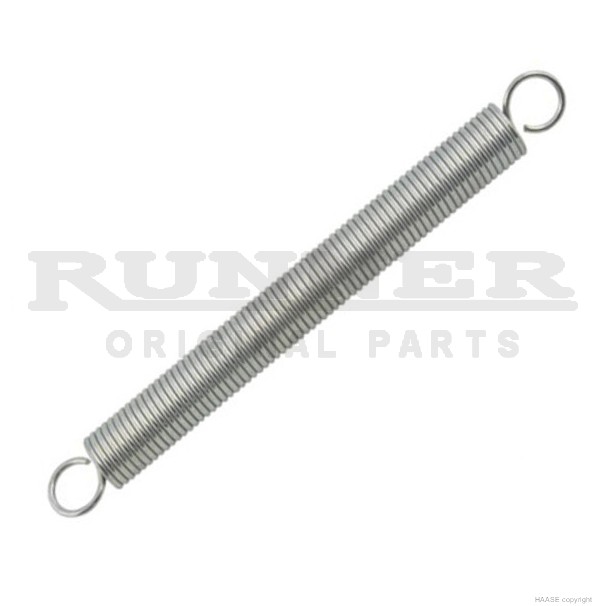

[ 3 ]	056.0010	LONG SPRING FOR SILENCER HOLDER

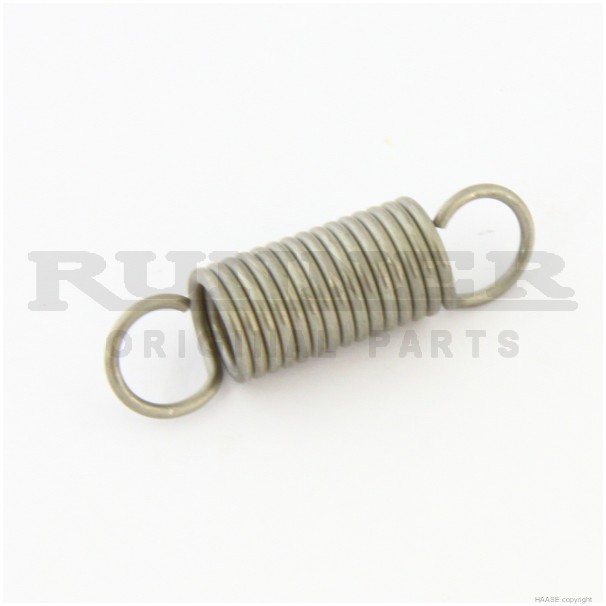

[ 4 ]	056.0011	SHORT SPRING FOR EXHAUST BEND

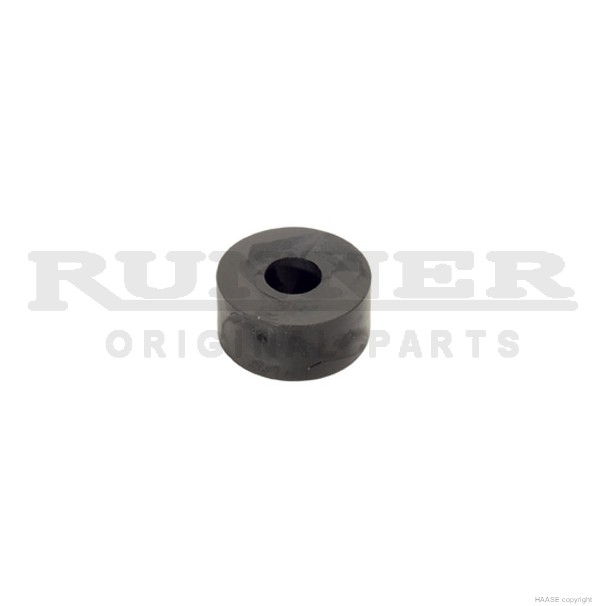

[ 5 ]	060.0010	RUBBER WASHER, 27X10X14 mm
[ 6 ]	060.0020	EXTRA PLATE FOR SILENCER HOLDER L=90mm
[ 6 ]	060.0025	EXTRA PLATE FOR SILENCER HOLDER L=200mm
[ 7 ]	054.0013	ADJUST. SILENCER HOLDER SUPPORT BRACKET, KF

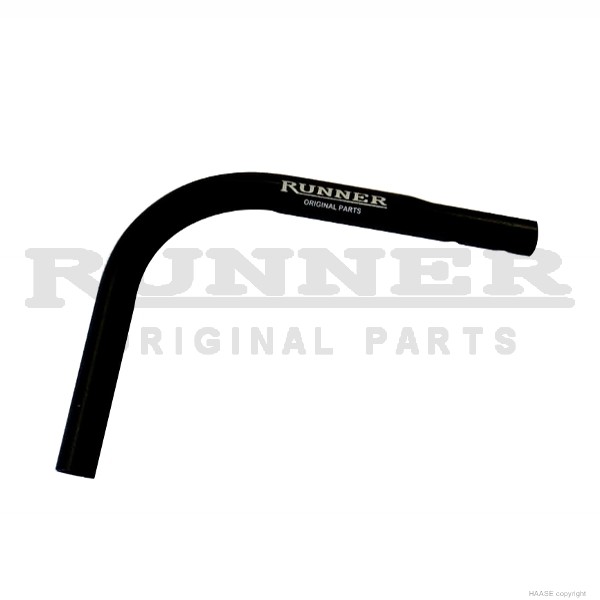

[ 7 ]	054.0013.5	ADJUST. SILENCER HOLDER ALUMINUM SUPPORT BRACKET, KF

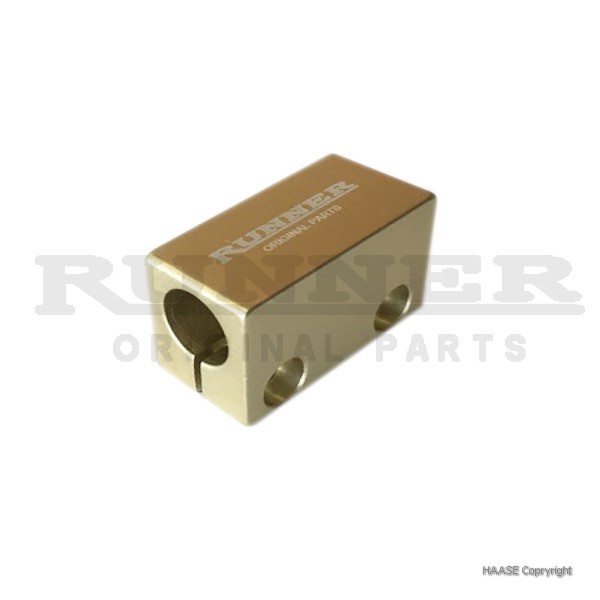

[ 8 ]	054.0014	ALU. FIXING CLAMP FOR SILENCER HOLDER

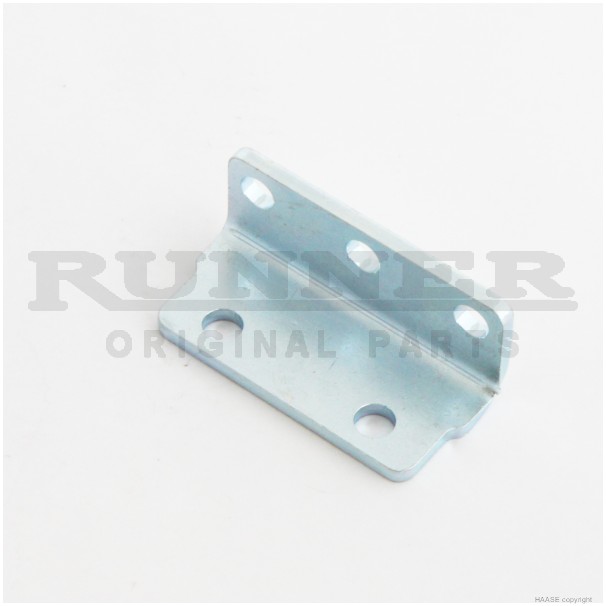

[ 9 ]	054.0020	CLAMP FIXING PLATE FOR ADJUST. SILENCER HOLDER
	030.0010	CLAMP, LONG 28mm
	030.0020	CLAMP, LONG 30mm
	030.0030	CLAMP, LONG 32mm
	030.0031	CLAMP, SHORT, THREADED, 32mm
	030.0032	CLAMP, SHORT, THREADED, 30mm
	030.0033	CLAMP, SHORT, THREADED, 28mm
	300.0155	ROTAX RUBBER BUFFER 30X30 M8
	300.0040	ROTAX MAX EXHAUST SUPPORT KIT 28mm
	300.0042	ROTAX MAX EXHAUST SUPPORT KIT 30mm
	300.0044	ROTAX MAX EXHAUST SUPPORT KIT 32mm

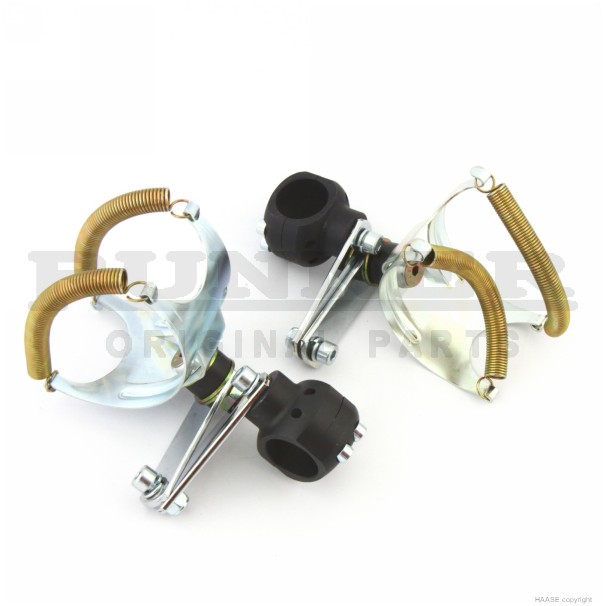

	300.0030	ALUM. COMPL. SILENCER SUPPORT KIT KZ-125cc ADJUSTABLE 30mm

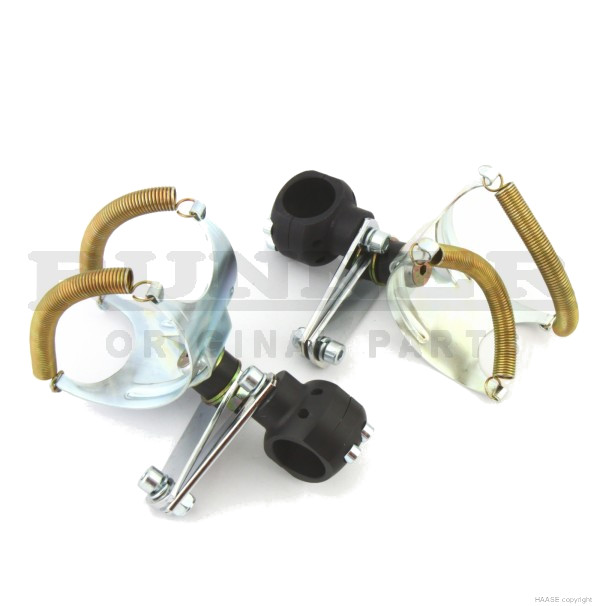

	300.0032	ALUM. COMPL. SILENCER SUPPORT KIT KZ-125cc ADJUSTABLE 32mm
	300.0035.1	ALUM. SILENCER SUPPORT KZ-125cc L=150mm

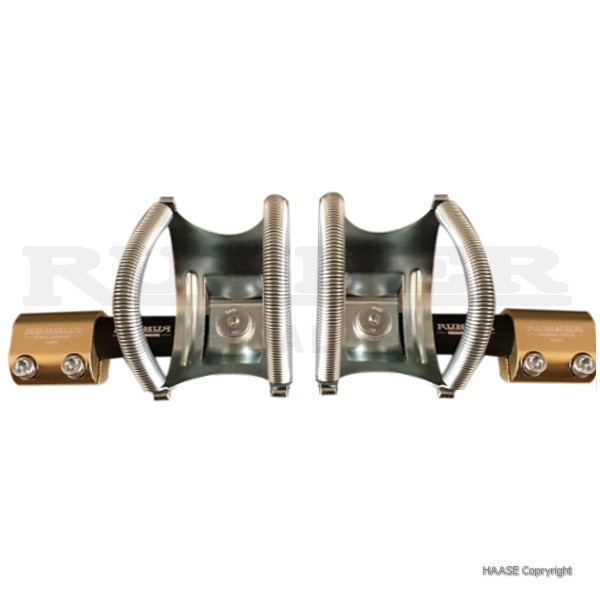

	300.0035	ALUM. COMPL. SILENCER SUPPORT KIT KZ-125cc
	300.0079	DD2 EXHAUST SUPPORT KIT 30mm
	300.0070	SUPPORT 20mm, SHORT, BENT FOR DD2 EXHAUST
	300.0075	SUPPORT 20mm, LONG, BENT FOR DD2 EXHAUST
