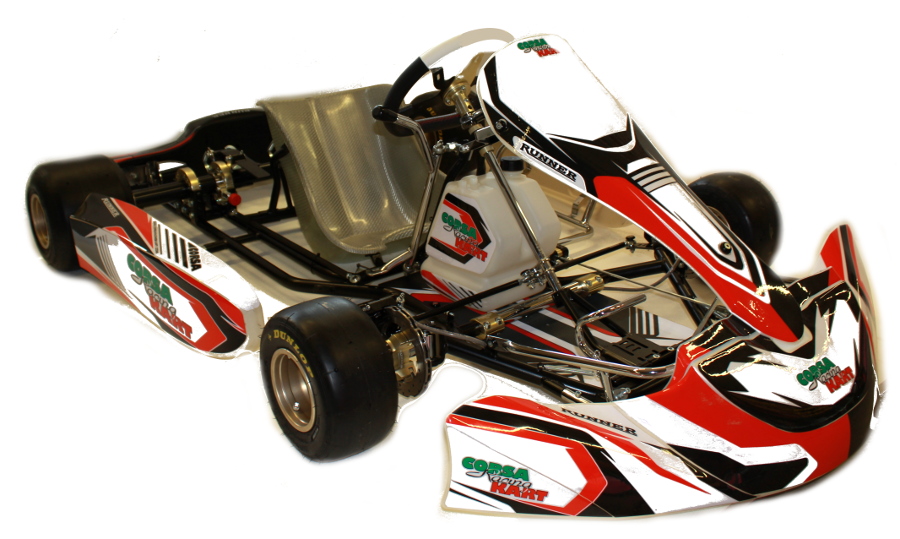

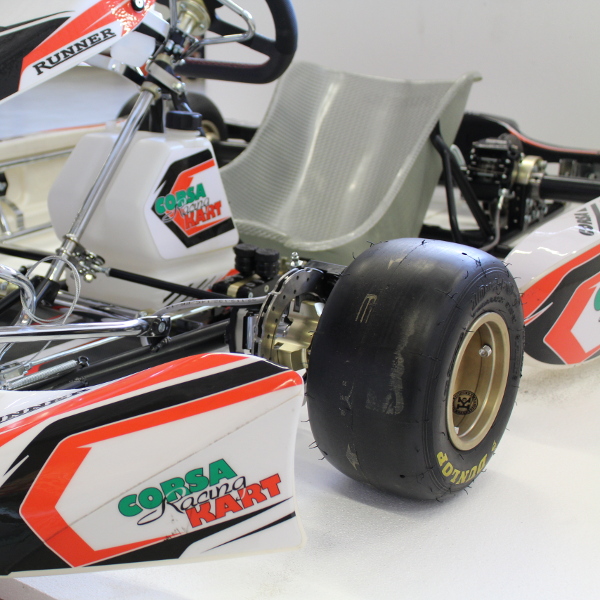

CH20_kz chassis
CH20 KZ technical data sheet

HOMOLOGATION:CIK/FIA 014/CH/01
Main frame tubing:Cr-Mo steel 30mm
Wheelbase:1040mm

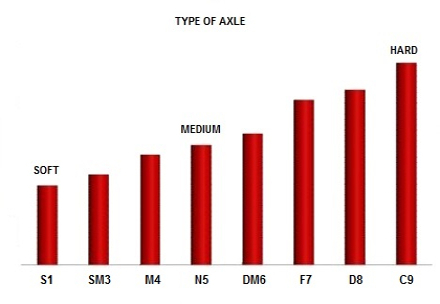

Rear axle:40 or 50 Ø mm, black with 3 positions adjustable ride height
Braking system:runner (CIK/FIA 92/FR/14)
Brake lines:Braided steel, silver

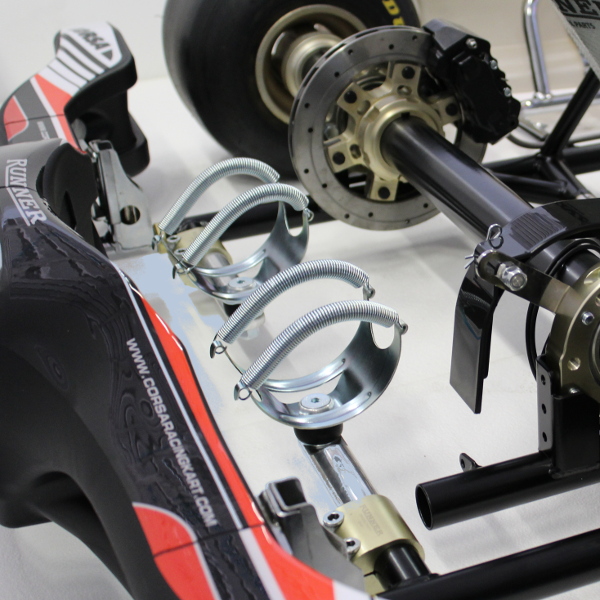

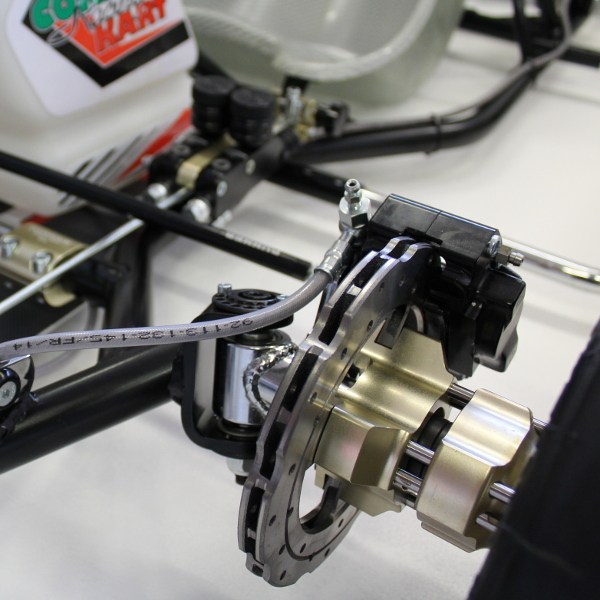

Brake disk:Self ventilated floating rear disk, in cast-iron, 190mm Ø, thickness 16

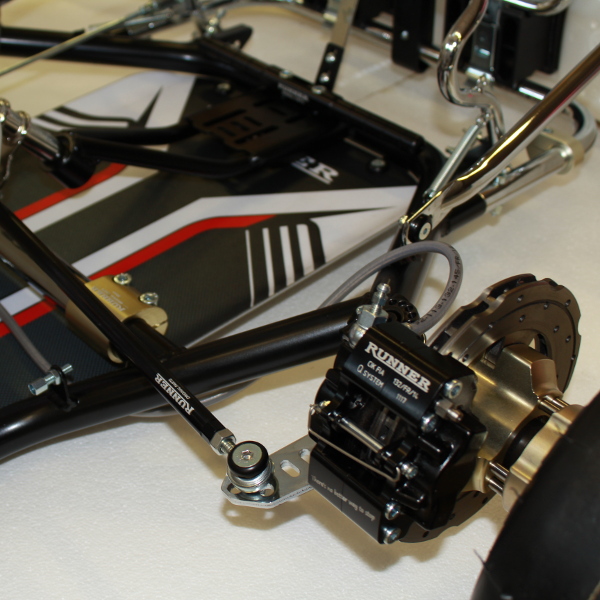

Rear brake caliper:Black anodized, special alloy forged hydraulic caliper, 4 pistons, self-adjusting
Brake pump:Double circuit brake master cylinder with aluminium oil recovery thank
Stub axle:25mm, hollow, with 10mm precision ground king-pin bolt
Steering wheel:leather with embroidery
Wheels:Black magnesium wheels low volume 212-132mm
Chassis set up:
  • 16 positions adjustable caster/camber pills
  • Front ride height
  • Adjustable Ackerman
  • Complete front stabilizer
Features:
  • Magnesium accessories
  • KZ Exhaust support

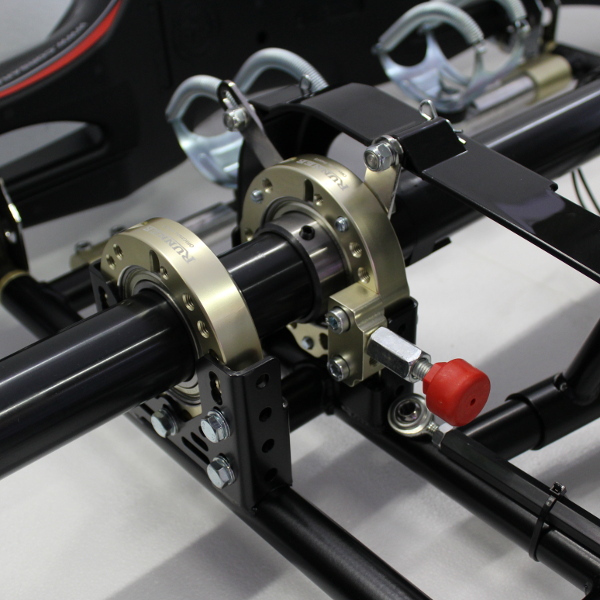

  • Axle bearing flange with 5 fixing holes
  • Bearing axle locking adjustment screw
  • Smooth running axle bearings
  • KZ Closed type chain guard

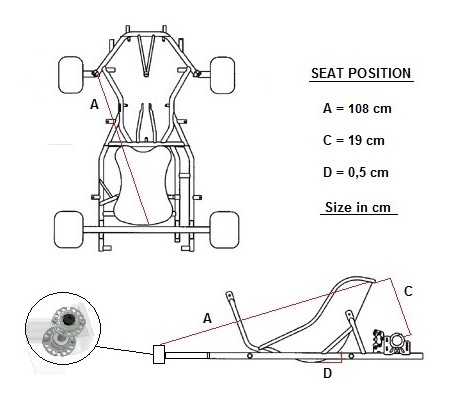

Seat:Flat bottom, light weight, Silver model

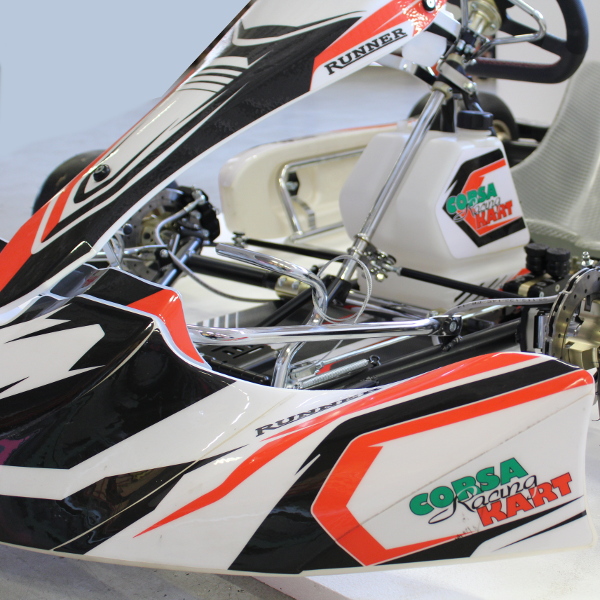

Bodywork:CIK/FIA homologated KG 506 Model
Graphics:
  • Complete set, high tickness
  • Antislip floor tray graphic
Options at extra cost:
  • Aluminium pedals
  • Adjustable feet support
  • Rear torsion bar


CH20kz chassis


CH20kz chassis
